PRODUCT DESCRIPTION
The ACASOM 2.4/5.8GHz Dual-Band Signal Enhancement Amplifier is a high-performance, plug-and-play solution engineered to dramatically extend the range and reliability of standard IEEE 802.11b/g/n Wireless LAN systems. Operating on both the 2400-2500MHz and 5800-5900MHz bands, this amplifier delivers up to 4W (36dBm) output power and provides a massive 50x signal amplification. With an ultra-low noise figure of <2.5dB and high gain (18dB Rx / 18dB Tx), it ensures exceptional link quality, enabling stable long-range wireless communication for real-time video transmission, remote inspections, and expansive network coverage without the need for complex software or configuration.

KEY FEATURES

Dual-Band High Power: Supports both 2.4GHz and 5.8GHz bands with 4W (36dBm) output for maximum compatibility and extended range.
Ultra-Low Noise & High Gain: <2.5dB noise figure and 18dB receive gain ensure superior sensitivity and clarity for weak signal reception.
Plug-and-Play Operation: Fully compatible with standard WLAN systems; requires no additional software for immediate deployment.
Robust Industrial Design: Housed in a durable aluminum chassis with LED status indicators, built for reliable operation in varied environments.
Massive Signal Boost: Delivers up to 50x power amplification to overcome distance and obstacle-related signal loss.

ATTENTION – INSTALLATION & USE

Power Supply: Use a 12V / 1A DC power adapter.
Heat Management: For sustained high-power operation, adding a heat sink or cooling fan is recommended.
Connection Sequence: Crucial for safety. First, connect the antenna. Second, plug in the power adapter. Finally, connect your wireless device (e.g., router, access point).
Optimal Performance: The amplifier reaches full 36dBm output

TECHNICAL SPECIFICATIONS

Parameter	Specification
Frequency Range	2400-2500MHz, 5800-5900MHz
Output Power (P1dB)	36 dBm (4 W)
Receive Gain (Rx)	18 dB ±1
Transmit Gain (Tx)	18 dB ±1
Noise Figure	< 2.5 dB
Operating Voltage	6 - 16 V DC
RF Connectors	Input: SMA-K; Output: RP-SMA-K
Power Connector	2.5*0.7mm DC Jack
Operating Temperature	-30℃ ~ +70℃

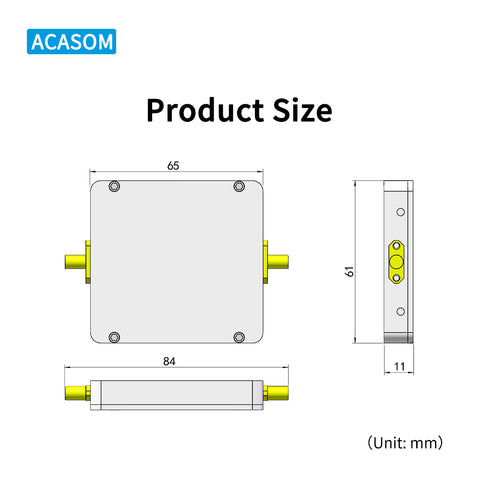

Dimensions	65 x 61 x 11 mm
Net Weight	0.06 kg

TYPICAL APPLICATIONS

Long-Range Wi-Fi / WLAN Network Extension
Wireless CCTV and HD Video Transmission Systems
Drone FPV and Telemetry Links
Outdoor Wireless Networking for Remote Sites

2.4/5.8GHz 4W Dual Band WLAN Signal Booster 50x Amplification Ultra Low 2.5dB Noise
