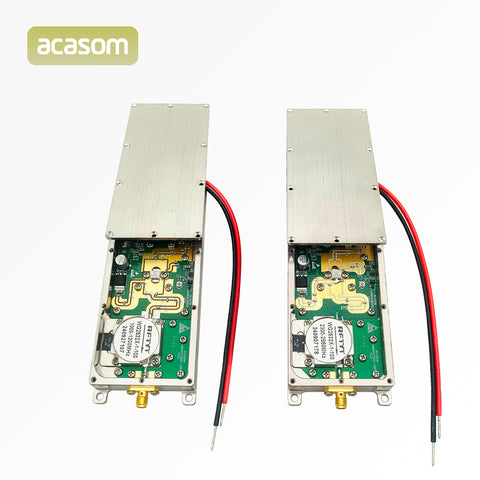

ACASOM 960MHz–1100MHz 100W GaN Jammer Module represents the next evolution in drone countermeasure technology, providing military-grade signal disruption capabilities against modern FPV and commercial UAVs like DJI and Autel. Engineered for tactical superiority, this module forms the backbone of professional anti-drone defense networks.

At its core, advanced Gallium Nitride (GaN) technology enables breakthrough performance - delivering greater energy efficiency, lower operational current draw, and significantly higher power output in a remarkably compact package. This represents a quantum leap over obsolete LDMOS architectures, particularly when operating under continuous high-demand conditions in challenging environments.

Operators benefit from fully adjustable power output (10W-100W), allowing precise configuration for everything from covert mobile operations to permanent high-power installations. The innovative ceramic tube enclosure provides unmatched thermal regulation for 24/7 operational readiness, while intelligent open-circuit protection circuitry guarantees fail-safe performance during extended missions.

From critical infrastructure protection to battlefield airspace denial, the ACASOM 960MHz–1100MHz 100W GaN Jammer Module delivers uncompromising electronic warfare capabilities against unauthorized drone threats. Its modular design and future-proof architecture establish a new benchmark in scalable, adaptive counter-UAV solutions for defense and security applications.

(Note: All specifications and capabilities described are for legitimate defense applications only, subject to compliance with international regulations and end-user licensing requirements.)

Number	Items	Specifications
1	Frequency Range	960-1100MHz
2	Operating Voltage	28V
3	Flatness	±0.5dB
4	Output Power	100W/50dBm
5	Current	7.5A @28V
6	Efficiency	45%@47dBm
7	LED State	Red
8	Operating Temperature	-30℃～85℃
9	Storage Temperature	-40℃～150℃
10	Operating Humidity	＜95%RH
11	RF PORT	Output: SMA-F
12	Power Socket	15cm red/black wire
13	Shell Material	Aluminum
14	Shell Size	17710227mm
15	Net Weight	0.85Kg

1. 28V /5A power supply.

2. Heat dissipation is recommended, such as adding heat sink or radiator fan.

3. Antenna should be screwed first, then plug the power adapter.

Sweep Signal Source*1

960MHz-1100MHz 100W GaN Circulator IIsolator UAV Jammer Module
