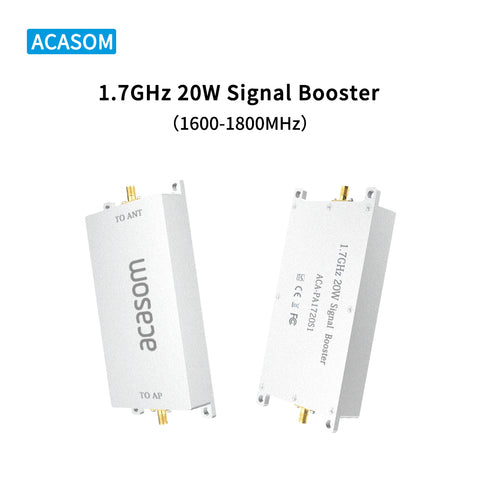

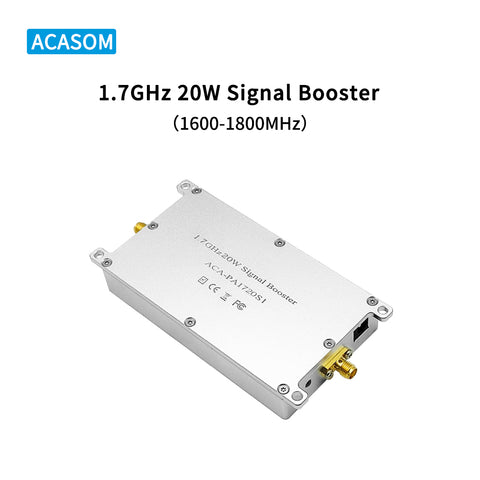

The ACASOM 1600-1800MHz Long-Range Signal Amplifier Module is a high-performance RF device engineered to dramatically extend and reinforce the telemetry, command, and control links for professional drones and UAV systems operating within the 1600-1800MHz frequency bands.

Specifically designed for unmanned aerial applications, this amplifier powerfully boosts signals for drone remote controllers, ground station data terminals, and onboard telemetry radios. This critical amplification delivers superior signal strength and penetration, significantly increasing the reliable operational range and stability for BVLOS (Beyond Visual Line of Sight) flights, industrial drone inspections, and long-endurance missions.

This module is indispensable in demanding environments where robust, low-frequency connectivity is essential, such as operations in dense urban areas, mountainous terrain, or for agricultural drone fleets. By enhancing signal strength across this dedicated band, the ACASOM amplifier ensures unwavering communication links for pilot commands and flight data, effectively eliminating dropouts and enhancing the safety and capability of your UAV platform.

Whether your mission involves long-range mapping, critical infrastructure inspection, or search and rescue operations, this amplifier provides the reliable, high-power RF solution required for professional and industrial-grade drone communications.

TECHNICAL SPECIFICATIONS

#	Item	Specification
1	Frequency Range	1600-1800MHz
2	Operating Voltage	12-24V DC
3	Receiving Gain	18dB ±1
4	Transmission Gain	19dB ±1
5	Max Output Power (P1dB)	43dBm (20W)
6	Input Trigger Power	Min: 3dBm, Max: 20dBm
7	EVM (Signal Quality)	3% @37dBm
8	Noise Figure	<2.5dB
9	Current Supply	2.1A @ Pout 43dBm, 24V
10	TX/RX Switch Speed	<1 μs (Ensures real-time control responsiveness)

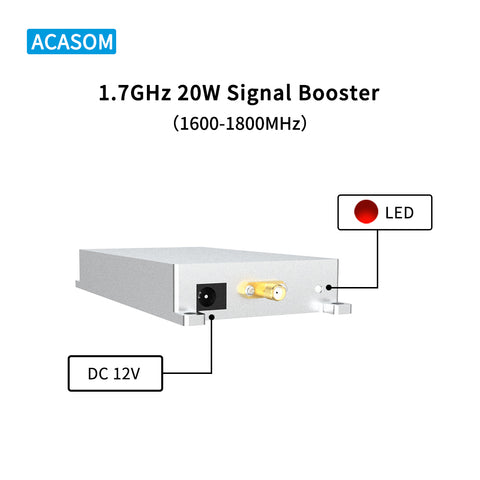

11	LED Indicator	TX: Green; RX: Red
12	Operating Temperature	-30℃ to +70℃

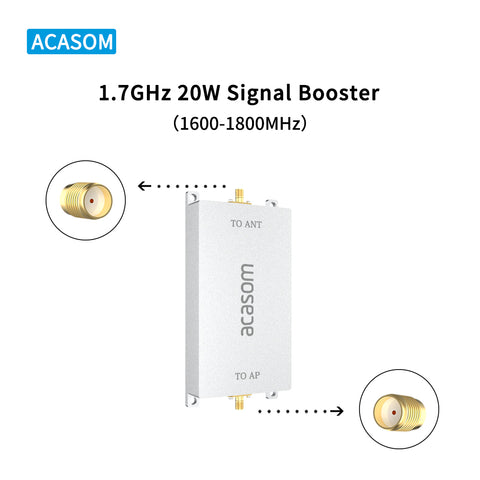

13	RF Connector	Input/Output: SMA-Female
14	Shell Material & Size	Aluminum, 1185917mm
15	Net Weight	0.27kg

Test report

Receiving Gain

VSWR RX

Transmission Gain
VSWR TX

Output Power(20W)
