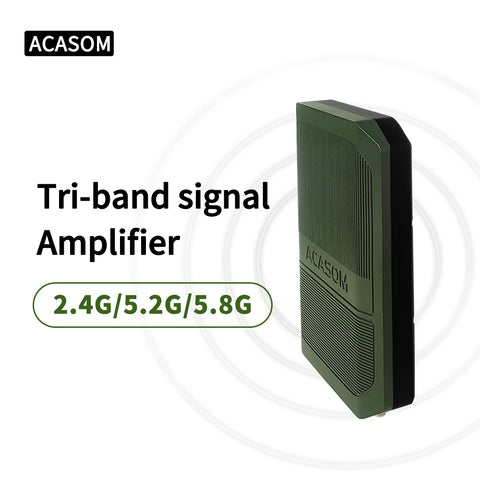

The ROC-6 represents the pinnacle of signal amplification technology, delivering professional-grade performance for demanding drone and FPV applications. This tri-band powerhouse operates simultaneously across 2.4G (2400-2500MHz), 5.2G (5150-5350MHz), and 5.8G (5725-5850MHz) frequencies, ensuring universal compatibility with modern drone systems.

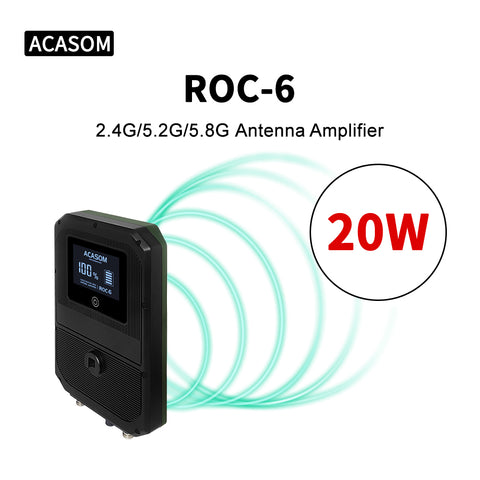

With an industry-leading 20W (43dBm) output power per band and a high-capacity 5000mAh/16.8V battery, the ROC-6 provides up to 6 hours of continuous operation, significantly extending your drone's effective range while maintaining crystal-clear signal integrity.

Key Advantages:

Tri-band simultaneous operation for seamless frequency switching

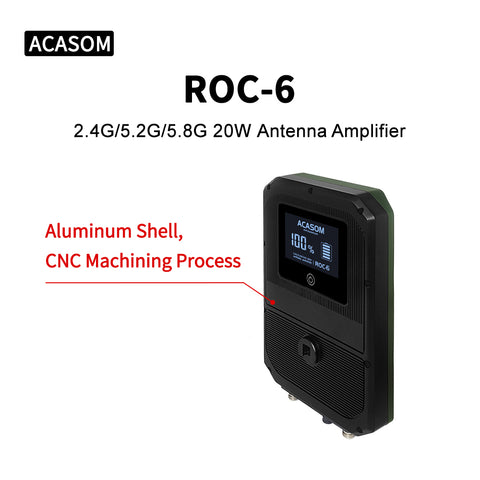

Military-grade aluminum housing with IP68 waterproof/dustproof rating
Advanced thermal management for stable performance in extreme conditions (-30°C to +70°C)

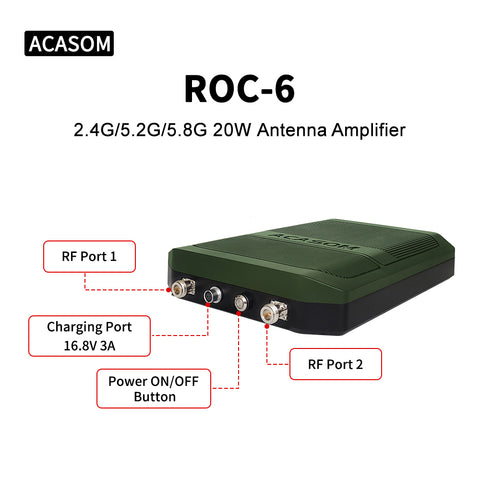

Dual N-Female RF ports for flexible antenna configurations

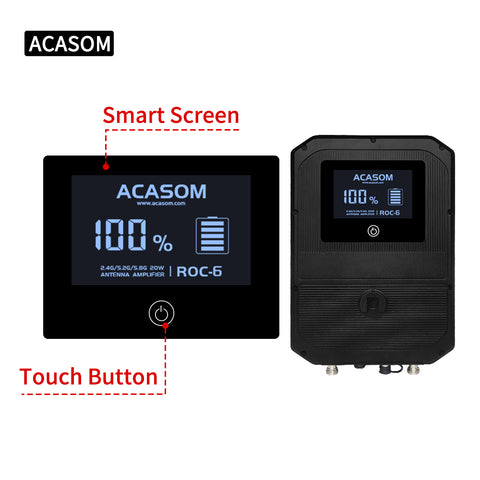

LCD battery monitoring and aviation-grade charging port

Engineered for FPV racers, professional cinematographers, and industrial drone operators, the ROC-6 delivers:
40% greater range than standard 10W boosters
Superior signal penetration through obstacles
<1μs switching speed for zero-latency response

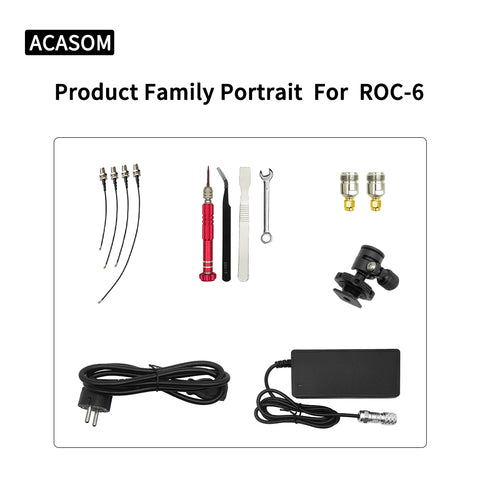

Package Includes:

ROC-6 Main Unit
16.8V/3A Fast Charger

Technical Specifications:

Antenna Gain: 15dB (2.4G) / 18dB (5G bands)
Noise Figure: <2.2dB
Dimensions: 295×210×50mm
Weight: 2.0kg

ROC-6 Technical Specifications Table

Number	Items	Specifications (2.4GHz Band)	Specifications (5.2GHz/5.8GHz Bands)
1	Frequency Range	2400-2500MHz	5150-5350MHz/5725-5850MHz
2	Max Output Power	43dBm(20W)	43dBm(20W)
3	Antenna Gain	15dB±1	18dB±1
4	Battery Capacity	5000mAh/16.8V
5	Receiving Gain	12dB±1	15dB±1
6	Transmission Gain	20dB±1	20dB±1
7	Input Trigger Power	Min:3dBm Max:23dBm	Min:3dBm Max:23dBm
8	EVM	3%@33dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz	3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz
9	Noise Figure	<2.2dB	<2.2dB
10	Current Supply	3.2A@Pout 43dBm 16.8V	3.2A@Pout 43dBm 12V
11	Charging Voltage	16.8V/3A	16.8V/3A
12	Working Time	6 Hours	6 Hours
13	TX/RX Switch Time Delay	<1 us	<1 us
14	Water Proof	IP68	IP68
15	Battery Capacity Tester	LCD Screen	LCD Screen
16	Charging Port	IP68 Aviation Plug	IP68 Aviation Plug
17	RF Connector	N-Female	N-Female
18	Operating Temperature	-30°C~+70°C	-30°C~+70°C
19	Storage Temperature	-40°C~+150°C	-40°C~+150°C
20	Operating Humidity	Up to 95% rel. humidity	Up to 95% rel. humidity
21	Shell Size	29521050(mm)	29521050(mm)
22	Shell Material	Aluminum	Aluminum
23	Net Weight	2.0Kg	2.0Kg

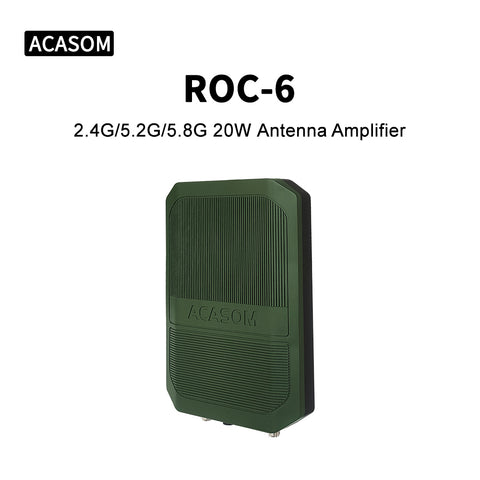

2.4G/5.2G/5.8G Triband 20W Signal Booster Antenna
