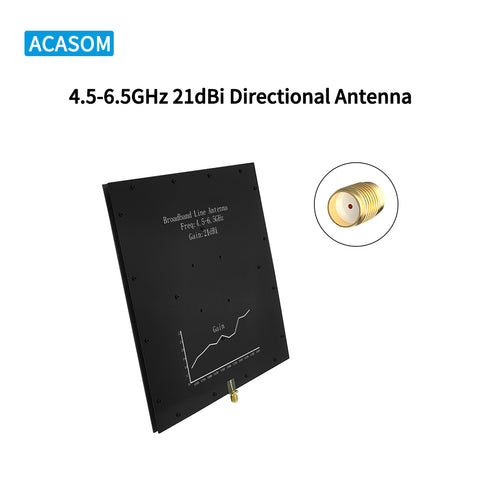

Unlock Crisp, Long-Range Video: The Ultimate 4.5-6.5GHz High-Gain Antenna for FPV & Telemetry

Tired of video breakup and weak control signals at the edge of your range? This 4.5-6.5GHz 21dBi Broadband Patch Antenna is engineered to deliver exceptional signal strength and clarity for your most demanding flights. Covering the critical 4.5-6.5GHz spectrum (including popular 5.3GHz, 5.8GHz FPV, and 5.9GHz bands), its super flat profile and high 90% efficiency provide a massive upgrade over standard antennas, ensuring robust video transmission and reliable control for long-range FPV, drone mapping, and professional UAV operations.

Why Pilots Choose This High-Performance Antenna:

Maximize Your Video Range: With a peak gain of 21dBi, this antenna focuses your signal into a powerful beam, dramatically extending your FPV video and control link distance while reducing interference.
Broadband Versatility: Seamlessly covers 4.5-6.5GHz, making it compatible with a wide range of systems including 5.8GHz analog/digital FPV, 5.3GHz HD systems, CPE devices, and telemetry links—all with one future-proof antenna.
Engineered for Efficiency: Achieves ≥90% radiation efficiency, meaning almost all input power is converted into effective signal strength, not lost as heat, giving you the maximum performance per watt.
Stable, Focused Signal Pattern: Features a consistent ~12° Half-Power Beamwidth and a strong 14dB Front-to-Back Ratio, providing excellent directional stability and rejection of signals from the rear for a cleaner link.

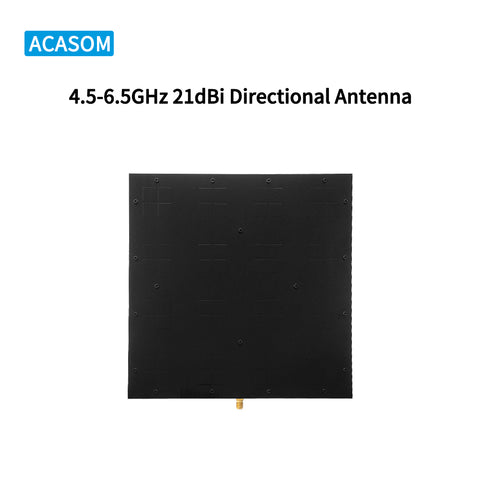

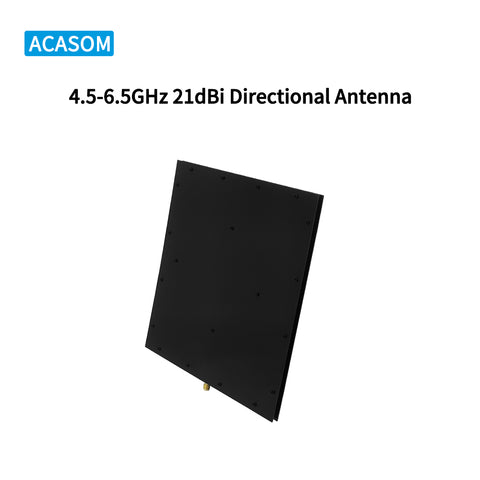

Rugged & Low-Profile Design: Built on a sturdy 200x200x7mm fiberglass substrate, it’s both lightweight (198g) and durable. Its ultra-flat form factor minimizes drag and is perfect for ground station tripods or vehicle mounting.

Detailed Technical Specifications:

Parameter	Specification
Frequency Range	4500 – 6500 MHz
Peak Gain	21 dBi
Gain (Typical across band)	17 - 21 dBi (See chart below)
VSWR	< 2.0
Radiation Efficiency	≥ 90%
Polarization	Horizontal
HPBW (Elevation & Azimuth)	~11° x ~12°
Front-to-Back Ratio	> 14 dB
Input Impedance	50 Ω
Power Handling	30 W

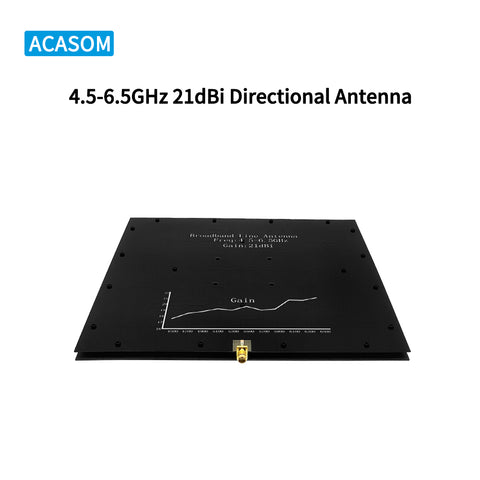

Connector	SMA-Female

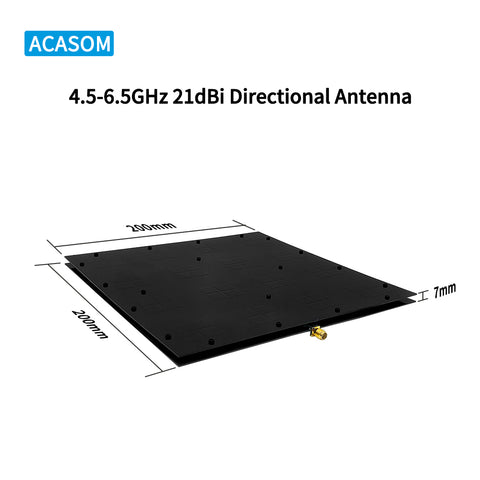

Dimensions	200 x 200 x 7 mm

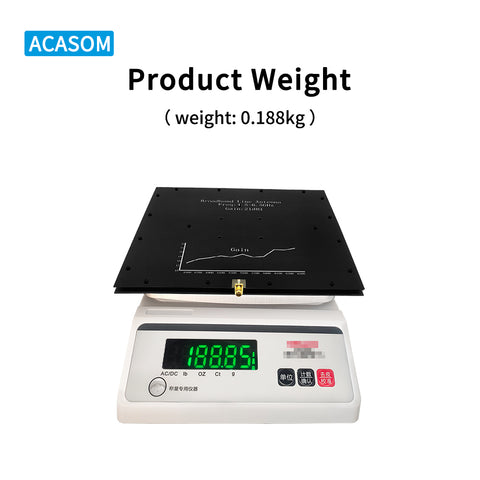

Weight	197.89 g

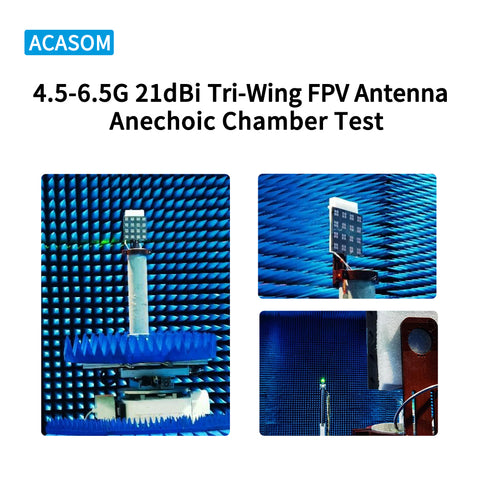

Performance Data (Verified):

Frequency (MHz)	Gain (dBi)	VSWR
4500	16.78	1.84
5300	18.58	1.23
5800 (Common FPV)	~19.2*	<1.2*
6500	21.22	1.12

Idea for:

FPV Racing & Long-Range Exploration: Achieve crystal-clear video feed at extreme distances.
Professional UAV/Drone Pilots: Enhance link reliability for mapping, surveying, and inspection platforms.
Wireless Video & CPE Systems: Use as a high-gain directional antenna for fixed wireless access or HD video transmission.
Ground Station Upgrades: The perfect directional antenna for your receive station to pair with a tracking system.

Package Includes:

1 x 4.5-6.5GHz 21dBi High-Gain Patch Antenna
Mounting hardware may vary. Please check product images or contact for details.
