The 5.8GHz Dual-Channel Signal Amplifier is a high-performance solution designed to extend and enhance wireless communication range for various mobile platforms and remote control systems. Operating within the 5.8GHz frequency band (5.725-5.85GHz), this signal amplifier significantly improves communication reliability and coverage, ensuring stable, long-range performance in challenging environments.

With dual-channel support and 4W output power, the ACASOM Signal Amplifier ensures strong, uninterrupted signals for enhanced operational safety and reliability. Whether conducting real-time video transmission or performing industrial monitoring tasks, this amplifier guarantees optimal signal strength, enabling extended operational range and minimal interference.

Enhance your wireless system's performance with the ACASOM 5.8GHz Signal Amplifier for superior connectivity and precision across various applications.

5.8GHz Channel Parameters

Number	Items	Specifications
1	Frequency Range	5725-5850MHz
2	Operating Voltage	5-16V
3	ReceivingGain	16dB±1
4	Transmission Gain:	18dB±1
5	Max Output Power(P1dB)	36dBm(4W)
6	Input Trigger Power	Min:3dBm Max:20dBm
7	EVM	3%@28dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
8	Noise Figure	＜3.0dB
9	Current Supply	485mA@Pout 28dBm 12V
10	TX/RX Switch Time Delay	＜1 us
11	LED Indicator	Transmitter: Green; Receiver: red
12	OperatingTemperature	-30℃～+70℃
13	StorageTemperature	-40℃～+150℃
14	Operating Humidity	Up to 95% rel. humidity
15	RF Connector	Input: SMA-K; Output: RP-SMA-K
16	Power Socket	2.5*0.7mm DC( default)

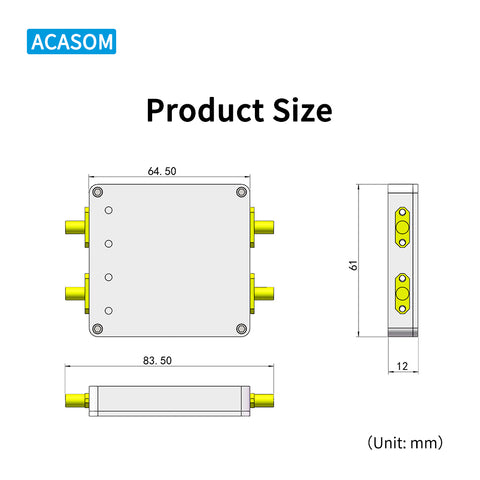

17	Shell Size	64.56112(mm)
18	Shell Material	Aluminum
19	Net Weight	0.12Kg

Electric current: 12V/1A
Please connect the antenna first then supply power, and finally connect the signal device.

1PCS* Dual Channel 5.8GHz Signal Booster
2PCS*5.8GH 5dBi Antenna
2PCS* RG316 Cable (IPEX TO SMA)
2PCS* RG402 Blue Cable (20CM)
3PCS* DC Power Adapter (about 20CM)

5.8GHz Dual Channel Signal Booster Range Amplifier Extender
