Take Definitive Control: Neutralize Drone Threats & Secure Wireless Environments with 50W of Directed RF Power

Facing unauthorized drones, illicit surveillance, or disruptive wireless signals? The ACASOM 90-220MHz 50W High-Power VCO Jammer Module is engineered to deliver decisive, wide-area signal denial. This tactical-grade device generates a powerful 50W RF blanket across a broad 90-220MHz spectrum, effectively disrupting control, telemetry, and data links for drones, WiFi networks, GPS tracking, and various communication bands. Built for demanding field operations, it provides a reliable and potent solution for perimeter defense, tactical enforcement, and high-stakes security scenarios.

Core Tactical Advantages:

High-Power Dominance: Outputs a commanding 50W (47dBm) of RF power, ensuring effective signal suppression over a significant operational radius and against stronger targets.
Broad Spectrum Coverage: Tunable across the 90-220MHz range, making it versatile against a wide array of threats including drone control (ISM bands), GPS L2, VHF communications, and other susceptible signals within this spectrum.
Operational Stability & Efficiency: Features excellent signal flatness (±0.5dB) and operates at up to 45% efficiency, ensuring consistent performance and better power management during extended missions.
Ruggedized for Real-World Deployment: Housed in a robust aluminum shell and rated for operation from -30℃ to 85℃, this module is built to endure harsh environmental conditions.
Customizable Power & Configuration: ACASOM supports custom power configurations to tailor the jamming strength and profile to your specific operational requirements and regulatory constraints.

Technical Specifications:

Parameter	Specification
Frequency Range	90 - 220 MHz
Output Power	50 W (Typical @ 47 dBm)
Operating Voltage	28 V DC
Current Consumption	~3.6 A (@28V, 47dBm Output)
Power Flatness	± 0.5 dB
Overall Efficiency	45% (@47dBm)

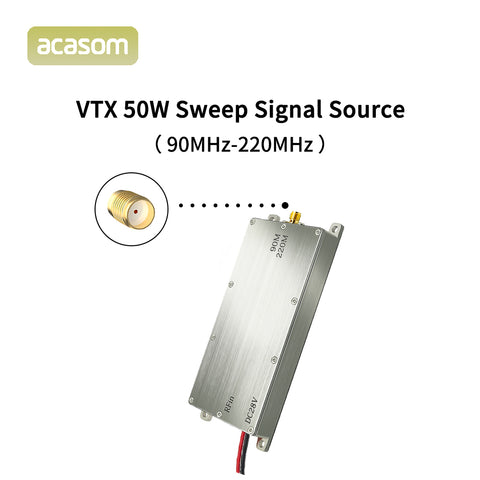

RF Connector	SMA Female

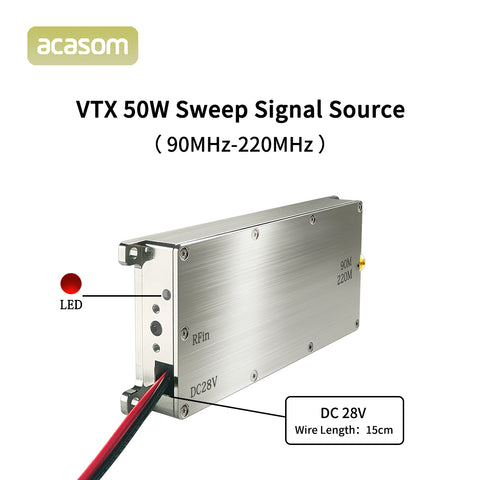

Power Input	5.5*2.0mm DC Jack (Default) or 15cm Wire Leads
Operating Temperature	-30℃ ~ +85℃
Storage Temperature	-40℃ ~ +150℃

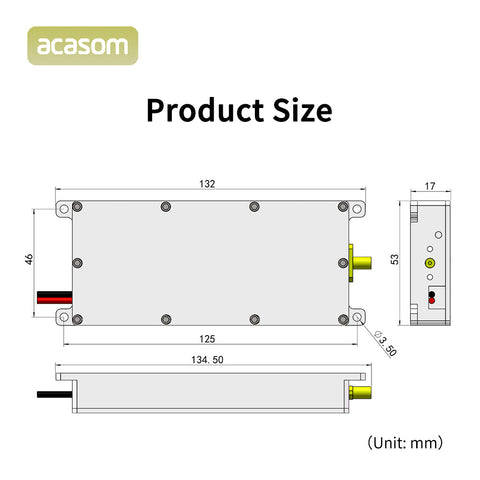

Dimensions (LxWxH)	128.5 x 53 x 17 mm
Net Weight	0.26 kg

Primary Operational Applications:

Counter-Drone (C-UAS): Disrupt the control, navigation (GPS), and video transmission links of unauthorized drones.
Wireless Security & Privacy: Create secure zones by blocking WiFi, Bluetooth, and specific VHF communication bands to prevent eavesdropping or unauthorized access.
Tactical Law Enforcement & Military: Neutralize remote-controlled IED triggers, disrupt enemy communications, and secure perimeters during sensitive operations.
Personal & VIP Protection: Provide mobile security by blocking tracking devices and wireless surveillance threats.

Critical Deployment Notes:

Power Supply Requirement: A stable and adequate 28V DC, 4.5A minimum power supply is mandatory for full-power operation. Under-powering will reduce effectiveness.
Thermal Management is Crucial: At continuous full power, active cooling via a heatsink or fan is REQUIRED to prevent overheating and ensure module longevity and reliability.
Safe Connection Protocol: Always connect the RF port to the compatible antenna system FIRST, before applying DC power, to prevent damage to the module.

Package Includes:

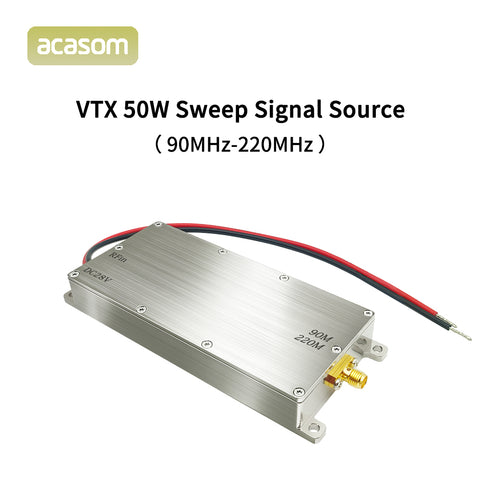

1 x 90-220MHz 50W High-Power VCO Jammer Module

Need a Custom Jamming Solution?
ACASOM specializes in high-power RF and counter-surveillance technology. We offer customized designs for specific frequency bands, power outputs, and form factors. Contact our team to engineer a solution for your unique mission profile.
