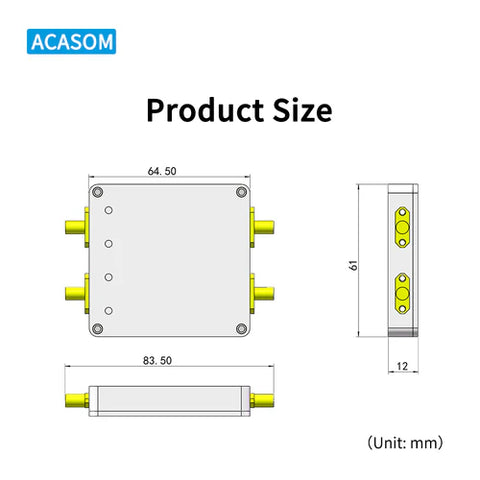

PRODUCT DESCRIPTION

The ACASOM 2.4GHz 4W Signal Booster PCBA is a versatile and efficient amplifier module designed to enhance and extend the coverage of your 2.4GHz wireless networks. Operating within the 2.4-2.4835GHz band, this module delivers a solid 4W (36dBm) output power with an optimized gain configuration of 15dB transmit gain and 10dB receive gain. This balanced setup is ideal for improving signal strength and reliability for a wide range of applications, including WiFi routers, Bluetooth devices, ZigBee networks, and wireless IoT sensors. Its compact PCBA form factor allows for seamless integration into custom designs and OEM products, providing a reliable solution to eliminate coverage gaps and ensure stable connectivity.

KEY FEATURES

Optimized Gain Profile: 15dB Tx / 10dB Rx gain provides a strong boost for transmitted signals while maintaining excellent receiver performance.
Substantial Output Power: 4W (36dBm) maximum output ensures extended wireless range and improved signal penetration.
Multi-Protocol Compatibility: Effectively boosts signals for IEEE 802.11b/g/n WiFi, Bluetooth, and ZigBee systems.
Ready for Integration: Compact PCBA module design simplifies embedding into custom wireless solutions and product upgrades.
Stable & Efficient: Low noise figure and efficient operation ensure reliable performance in various environments.

TECHNICAL SPECIFICATIONS

Parameter	Specification	Details
Frequency Range	2.400 - 2.4835 GHz	Standard 2.4GHz ISM band for global compatibility.
Max Output Power (P1dB)	36 dBm (4 W)	Provides significant power for range extension.
Transmission Gain (Tx)	15 dB ±1	Enhances the strength of outgoing signals.
Receiving Gain (Rx)	10 dB ±1	Improves sensitivity for receiving weaker signals.
Input Power Range	7 dBm to 21 dBm	Recommended input level for optimal operation.
Noise Figure	≤ 2.5 dB	Ensures clean signal amplification with minimal added noise.

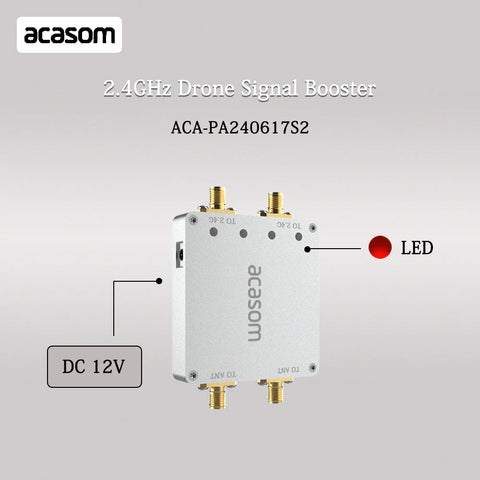

Operating Voltage	6 – 16 V DC	Wide input voltage range for design flexibility.
Supply Current	450 mA @ 28dBm output, 12V	Typical current draw under load.
Operating Temperature	-20℃ ~ +60℃	Suitable for a broad range of environmental conditions.

TYPICAL APPLICATIONS

WiFi Range Extenders and Mesh Network Nodes
Bluetooth Audio and Data Link Enhancement
ZigBee-based Smart Home and Industrial Automation Hubs
Wireless Sensor Networks and IoT Gateways

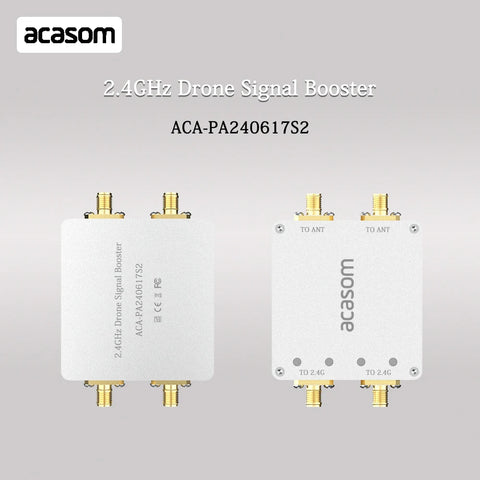

2.4GHz 4W Dual-Channel Wireless Signal Booster Module | 10dB Rx / 15dB Tx Gain | for WiFi Bluetooth ZigBee
