PRODUCT DETAILS
DESCRIPTION
Introducing the ACASOM Super Miner12, a next-generation outdoor extender engineered for maximum performance in Helium Network and LoRaWAN systems. This advanced amplifier features three key improvements: an ultra-low Noise Figure (NF) of ≤1.2dB for superior signal sensitivity, flexible triple power supply modes (BiasTee, Adapter, or USB), and variable gain combinations (e.g., 17/6, 14/3, 11/0 dB) when paired with our Super BiasTee for precise system tuning. Designed for the 863-870MHz EU band, it delivers high output power (1W) with excellent efficiency, ensuring reliable, long-range coverage and enhanced Proof-of-Coverage for your hotspot.
OPTIMIZED SETUP SOLUTIONS
How to Set the Super BiasTee Value:
With a long RF cable (>5 meters) or power divider between the extender and miner, set the Super BiasTee ATT=0dB.
With a direct connection between the extender and hotspot, set the Super BiasTee ATT=6dB.
Connection Guide: Connect the extender in-line on the antenna cable. The Input port connects to your antenna, and the Output port connects to your hotspot miner.
KEY FEATURES
Ultra-Low Noise Figure: ≤1.2dB NF significantly improves receiver sensitivity for better signal reception.
Triple Power Supply: Versatile operation via BiasTee (DC over coax), DC Adapter, or USB cable.
Adjustable Gain: Work with the ACASOM Super BiasTee to achieve optimal gain settings (e.g., 17/6dB) for your specific environment.
High Power & Efficiency: 30dBm (1W) P1dB output with stable performance and clear LED indicators for TX/RX status.
Rugged Outdoor Design: Compact, aluminum IP67 housing built to withstand harsh environmental conditions.
TECHNICAL SPECIFICATIONS
| Parameter | Specification | Details / Benefit |
|---|---|---|
| Frequency Range | 863 - 870 MHz | Dedicated to EU LoRaWAN and Helium Network bands. |
| Receive Gain | 17 dB ±1 | Boosts weak incoming signals for better decoding. |
| Transmit Gain | 6 dB ±1 | Amplifies outgoing signals for extended range. |
| Noise Figure | < 1.2 dB | Exceptional sensitivity, minimizing added system noise. |
| Max Output Power (P1dB) | 30 dBm (1 W) | High power capability for strong signal transmission. |
| Operating Voltage | 5 - 24 V DC | Compatible with a wide range of power sources. |
| RF Connectors | Input: SMA-Female; Output: RP-SMA-Female | Standard connectors for secure connections. |
| Power Options | 2.5*0.7mm Port (BiasTee/Adapter) & USB | Maximum installation flexibility. |
| Operating Temperature | -40℃ ~ +70℃ | Reliable performance in extreme weather. |
| Dimensions | 64.5 x 34.5 x 10 mm | Compact and discreet form factor. |
| Net Weight | 0.06 kg | Lightweight yet durable construction. |
PACKAGE INCLUDES
138 SET:
1 x Super Miner12 Extender
2 x RG402 Cable (20CM)
1 x Bias Tee
1 x USB Adapter
1 x EU Power Plug

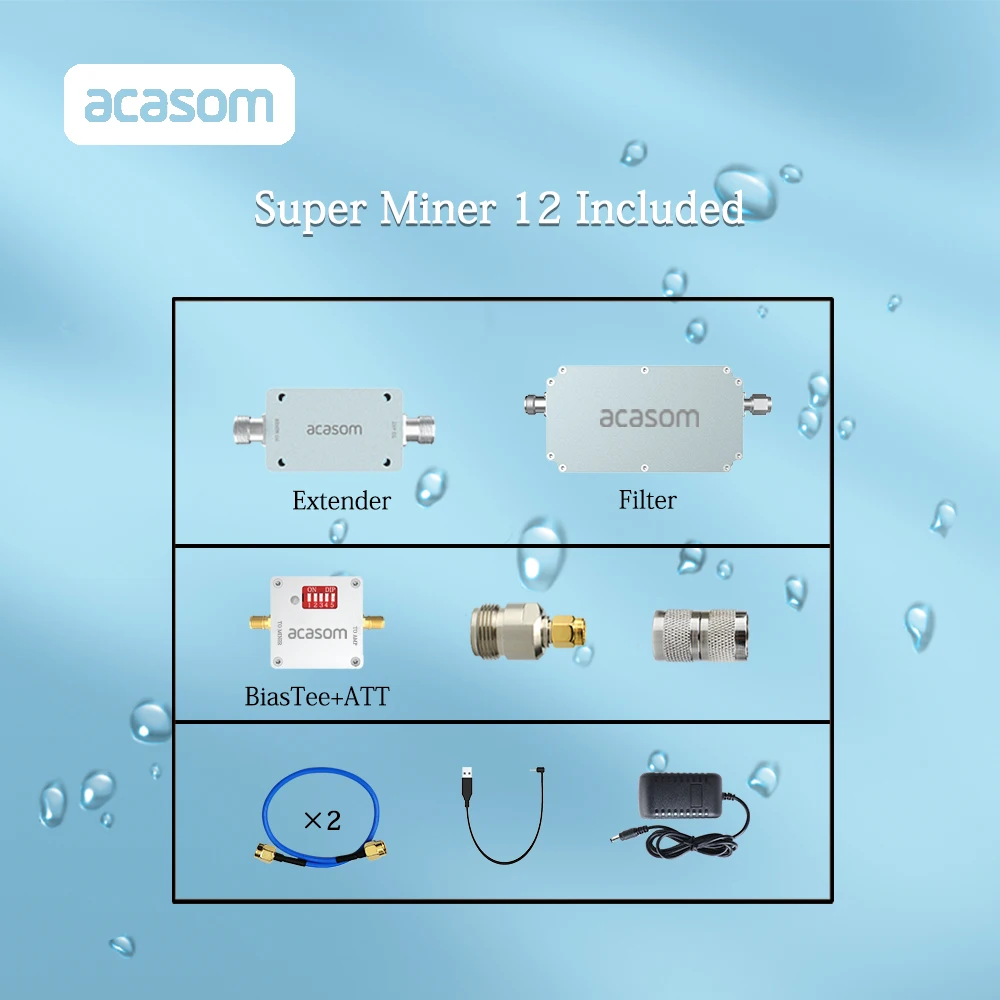

198 SET (Complete Kit):
1 x Super Miner12 Extender
2 x RG402 Cable (20CM)
1 x Bias Tee
1 x USB Adapter
1 x EU Power Plug
1 x RF Adapter
1 x 868MHz Cavity Filter (for superior interference rejection)
Super Miner12 Outdoor 868MHz Extender | ≤1.2dB Ultra-Low Noise Figure | 17/6dB Gain | BiasTee/Adapter/USB Power
