PRODUCT DETAILS

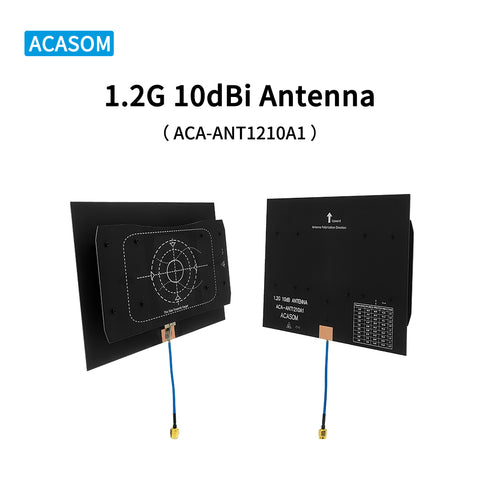

The ACASOM 1.2G 10dBi Drone Antenna A1 is engineered to deliver exceptional signal performance and reliability for drone applications operating in the 1.2GHz band. With its high gain and optimized radiation pattern, this antenna ensures stable, long-range connectivity, making it an ideal choice for both commercial and industrial drone systems requiring robust communication links.

Key Features

High Gain Performance: 10dBi gain for enhanced signal strength and extended communication range.
Optimized Efficiency: ≥90% radiation efficiency ensures maximum power utilization and superior signal integrity.

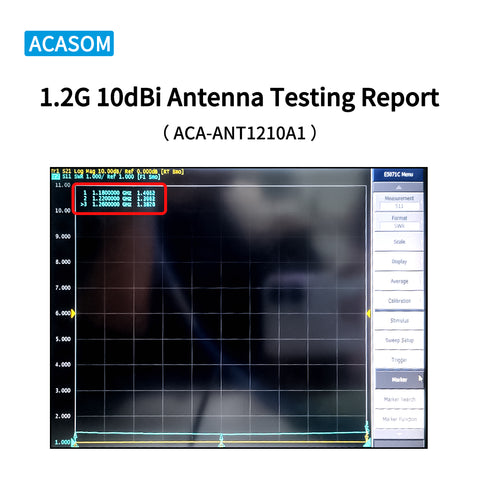

Precision Tuning: Low VSWR (<1.5) minimizes signal loss and reflects power effectively.

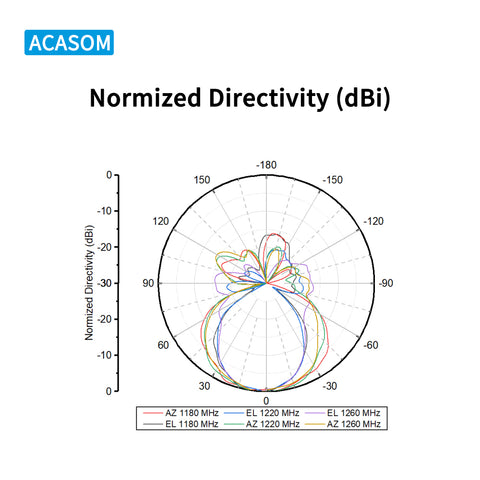

Stable Radiation Pattern: Vertical polarization with a 34° EL HPBW and a 50° AZ HPBW provides reliable coverage.

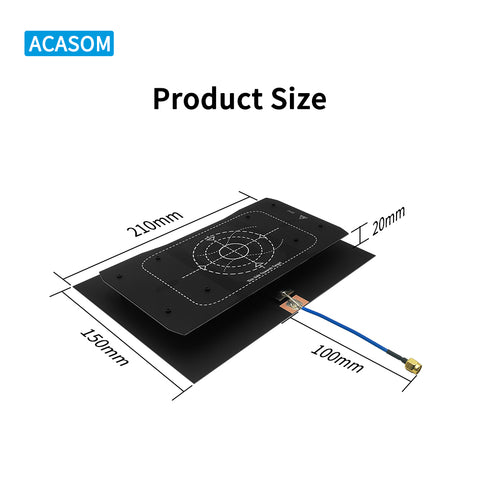

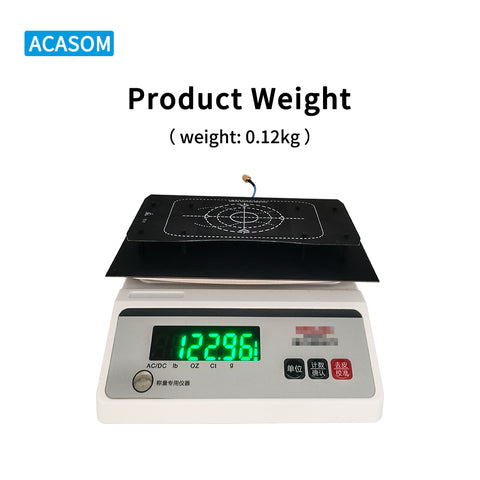

Robust Construction: Durable yet lightweight (120g) design with dimensions of 192×150×20mm, featuring an SMA-Male connector for secure integration.
High Power Handling: Capable of supporting up to 30W input power for demanding operational environments.

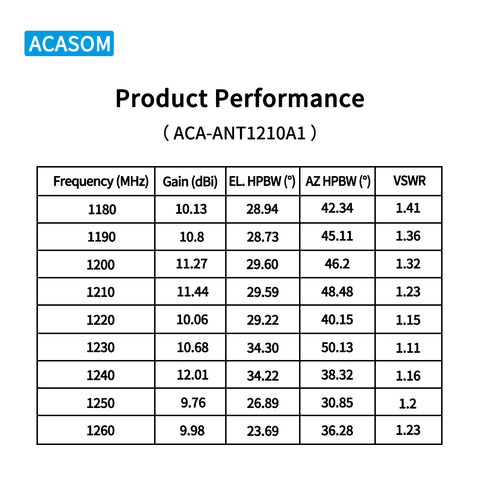

Technical Specifications

Parameter	Specification
Frequency Range	1180 - 1260 MHz
Gain	10 dBi
VSWR	< 1.5
Efficiency	≥ 90%
Polarization	Vertical
EL HPBW	34°
AZ HPBW	50°
Front-to-Back Ratio	15 dB
Input Impedance	50 Ω
Power Handling	30 W

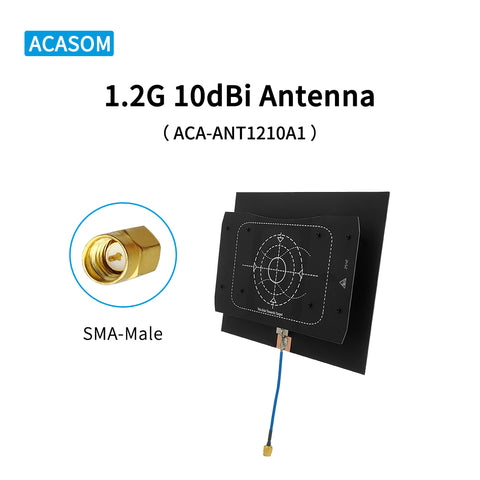

Connector Type	SMA-Male

Applications

Long-Range Drones: Ensures stable command and control links for BVLOS (Beyond Visual Line of Sight) operations.
Industrial Inspections: Provides reliable telemetry and video downlink for infrastructure, power line, and pipeline monitoring.
Search and Rescue Missions: Delivers critical communication reliability in emergency response scenarios.
Aerial Mapping & Surveying: Maintains a strong data link for high-precision GPS and data transmission systems.

Advantages

Superior Signal Clarity: High gain and efficiency combine for clear, uninterrupted communication.
Durable Design: Built to withstand the rigors of frequent outdoor and industrial use.
Easy Integration: Standard SMA connector allows for straightforward installation on compatible systems.
Optimized for 1.2G Band: Specifically designed for peak performance within the 1180-1260MHz spectrum.

Usage Scenarios

Commercial Drone Fleets: For agriculture, delivery, and surveillance drones requiring a dependable RF link.
FPV Systems: Used in conjunction with compatible video transmitters for a stable feed.
Ground Control Stations: Enhances the uplink/downlink capability between the drone and the operator.
Research & Development: Ideal for custom UAV projects needing a high-performance 1.2GHz antenna.

Why Choose ACASOM?

Proven Reliability: Rigorously tested to meet strict performance specifications for demanding applications.
Precision Engineering: Meticulously designed antenna patterns for optimal coverage and signal consistency.
Quality Assurance: Manufactured with high-grade materials to ensure longevity and consistent performance.
Expert Support: Backed by ACASOM's dedicated customer and technical support team.

Package Includes

1× ACASOM 1.2G 10dBi Drone Antenna A1
1× User Manual

Upgrade your drone's communication system with the ACASOM 1.2G 10dBi Antenna A1 – the definitive solution for achieving clear, stable, and long-range signal transmission in the 1.2GHz band.
