Ready-to-Integrate 10W Power: Complete Amplifier Module with Connectors & Heatsink Option

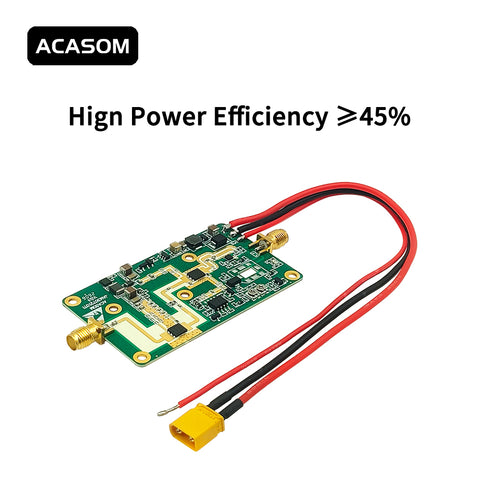

The ACASOM 10W Broadband FPV VTX Amplifier Module is a complete, ready-to-use amplification solution for demanding FPV, drone, and RF applications. Delivering a clean 40dBm (10W) of RF power across an astonishing frequency range, this module comes fully equipped with SMA connectors, XT-30 power interface, and an optional 3mm aluminum heatsink for immediate integration into your system. With advanced GaN technology achieving 45% efficiency and 38dB gain, it's the perfect balance of power, convenience, and thermal performance for serious pilots and system integrators.

Whether you're pushing 5.8GHz FPV video to extreme distances, boosting 2.4GHz control links through dense foliage, or experimenting with WiFi 6E/7 systems, this plug-and-play amplifier module is ready to perform—just connect and dominate the airwaves.

Why Choose This Complete 10W Amplifier Module:

Massive 10W Clean Output Power: Delivers 40dBm (10W) of RF power across all bands—ideal for extreme long-range FPV and mission-critical drone communications.

Broadband Frequency Coverage: Covers 100-7200MHz across multiple bands (100-1000MHz, 1000-2000MHz, 2000-3000MHz, 3000-4000MHz, 4000-5000MHz, 5000-6000MHz, 6000-7200MHz). Custom bands available for specialized applications.

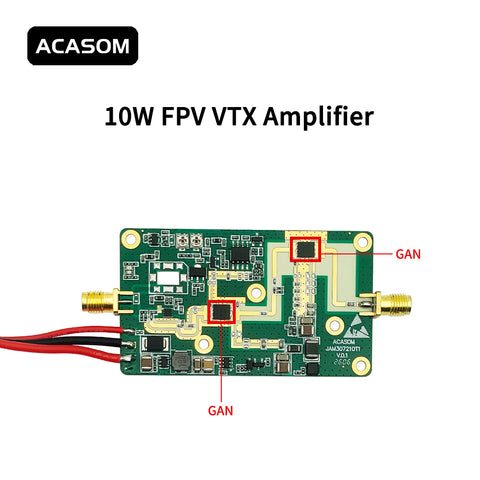

High-Efficiency GaN Technology: Achieves ≥45% power efficiency at full output using advanced Gallium Nitride (GaN) devices—superior to traditional GaAs, meaning less heat generation and lower current draw from your flight battery.
Powerful 38dB Gain: A robust 38dB gain stage ensures your existing VTX signal is boosted to maximum power with minimal added noise, preserving critical video quality and control link integrity.

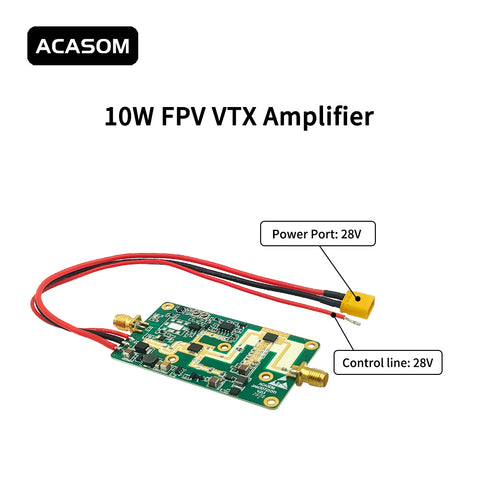

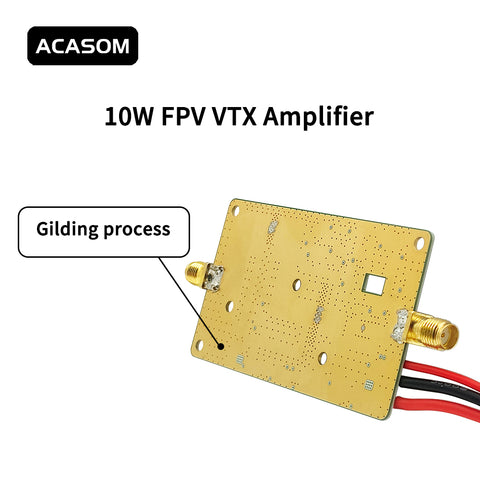

Ready-to-Use Connectors: Features SMA-K (female) RF connectors on input and output, plus XT-30 AWG18 20cm red/black wires for secure, easy power integration.
Integrated Heatsink Option: Includes a 3mm aluminum heatsink (optional configuration) for improved thermal management during sustained high-power operation—PCBA-only version also available for weight-critical builds.
Remote Control Capability: Dedicated 3-28V 20cm red control wire for remote on/off switching from your flight controller or power management system.
Compact & Lightweight: PCBA measures just 69x38x4mm (20g). With heatsink: 69x38x7mm (38g)—flexible options for any build requirement.

Technical Specifications:

Parameter	Specification

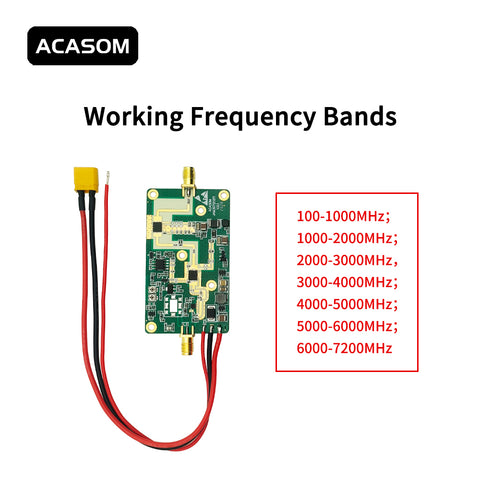

Frequency Range	100-1000MHz / 1000-2000MHz / 2000-3000MHz / 3000-4000MHz / 4000-5000MHz / 5000-6000MHz / 6000-7200MHz (Custom bands available)

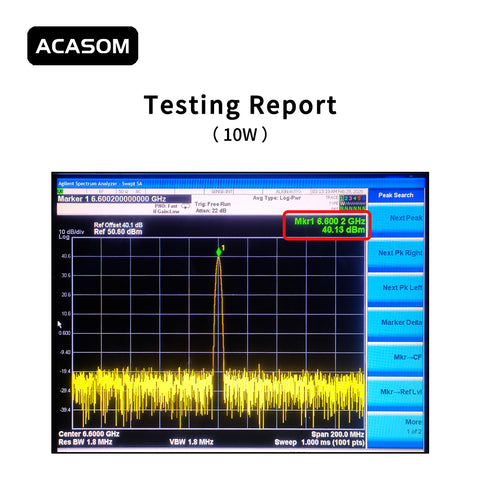

Output Power (P1dB)	40 dBm (10 W)
Gain (S21)	38 dB ± 1
Input Return Loss (S11)	≤ -15 dB
RF Input Power Range	-13 dBm to +10 dBm
Efficiency	≥ 45% @ 40dBm

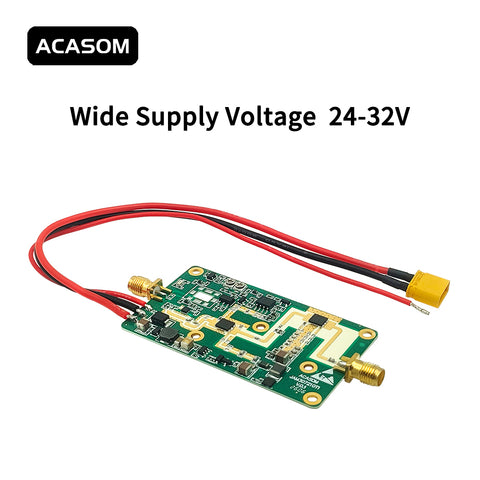

Operating Voltage	24 – 28 V DC
Current Consumption	~0.8 A @ 28V, 40dBm Output
LED Indicator	Red (Operating)
RF Connectors (Input/Output)	SMA-K (Female)
Power Connector	XT-30 with AWG18 20cm Red/Black Wire
Control Line	3-28V 20cm Red Wire (remote on/off)
Heatsink	3mm Aluminum (optional)

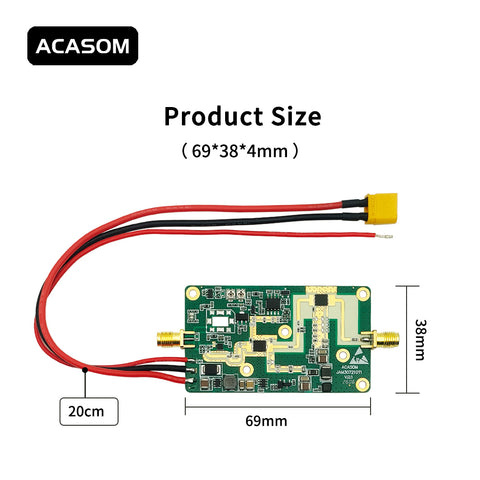

PCBA Dimensions	69 x 38 x 4 mm
With Heatsink Dimensions	69 x 38 x 7 mm

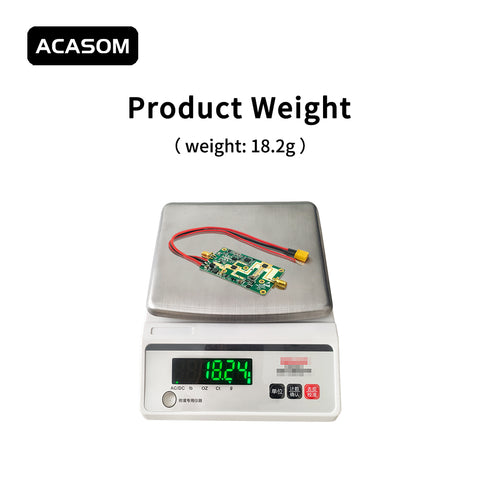

Net Weight (PCBA with wires)	20 g
Net Weight (with Heatsink)	38 g
Operating Temperature	-30℃ ~ +85℃
Storage Temperature	-40℃ ~ +150℃
Operating Humidity	< 95% RH

Heatsink Dimensions:

Base Thickness: 3mm
Overall Footprint: Matches PCBA dimensions (69x38mm)
Design: Optimized for passive cooling in moderate airflow environments

Critical Usage Notes:

Power Supply Requirement: Use a stable 28V / 1A minimum DC power supply via the XT-30 connector. For best results, a 28V / 1.5A supply is recommended for headroom at 10W output.
Thermal Management is IMPORTANT: At full 10W output, the integrated 3mm heatsink provides adequate cooling for most applications. In enclosed spaces, high ambient temperatures, or continuous operation, ensure additional airflow.
Safe Connection Sequence: Always connect the antenna FIRST to the SMA output, then apply DC power via XT-30, and finally enable your RF source.
Optimal Input Drive: For maximum clean output (up to 40dBm), provide an input signal of 3-4dBm (accounting for the 38dB gain). Avoid overdriving the input beyond +10dBm.
Control Line Function: The red control wire (3-28V) enables remote on/off switching—ideal for flight controller integration or power management systems.
Connector Care: SMA connectors should be tightened firmly but not over-torqued. XT-30 connector ensures secure, vibration-resistant power connection.

Ideal For:

Extreme Long-Range FPV Drones: Push 5.8GHz video links to the absolute limit with 10W of clean power
Professional UAV Platforms: Extend control and telemetry range for mapping, inspection, and survey missions
FPV Racing & Events: Overcome interference in crowded RF environments with massive 10W link margin
WiFi 5/6/7 Projects: Amplify 2.4GHz, 5GHz, and 6GHz signals for custom networking solutions
Ground Stations: Ready-to-integrate amplifier for base station builds
Amateur Radio: Complete 10W module for portable 1.2GHz, 2.4GHz, or 5.8GHz operations
Research & Development: Plug-and-play module for lab testing and prototyping

Technical Excellence:

Parameter	Performance
Gain Flatness	< ±1dB across any selected band
Input Matching	Excellent return loss minimizes VSWR interaction with your VTX
Harmonic Suppression	Internal filtering provides clean output with minimal harmonics
Linearity	Optimized for low EVM in digital modulation applications (WiFi, OFDM)

Customization Available:

ACASOM supports custom frequency bands and power configurations to meet your specific requirements. Whether you need a specific segment within 100-7200MHz or a tailored power level, contact our technical sales team to discuss your project needs.

Ready for 10W of Plug-and-Play Power?
Stop soldering and start flying. The ACASOM 10W Broadband FPV VTX Amplifier Module comes ready to integrate with SMA connectors, XT-30 power, and optional heatsink. Just connect and experience professional-grade 10W performance with zero hassle. Click 'Add to Cart' now and take your FPV range to the next level!
