The Ultimate Repeater Amplifier: 10W Power, 4 Bands, Built-In Battery, IP68 Waterproof

Tired of carrying separate amplifiers for different frequencies? Dreading dead batteries mid-flight? Meet the ACASOM 10W Quad-Band Front Amplifier—the first truly portable, all-in-one solution for serious FPV and UAV pilots. This powerhouse packs 10W (40dBm) of clean amplification across 2.3GHz, 2.4GHz, 5.2GHz, and 5.8GHz into a single, rugged, waterproof unit with its own 6000mAh internal battery. Simply connect, power on, and enjoy dramatically extended range and rock-solid links for up to 4 hours of continuous operation—no external power supply needed.

Why This Is the Ultimate Field Companion:

True Quad-Band Simultaneous Operation: Covers 2.3-2.4GHz, 2.4-2.5GHz, 5.0-5.3GHz, and 5.7-5.9GHz in one unit. Two independent ports work simultaneously, with automatic band switching—perfect for pilots running both 2.4GHz control and 5.8GHz video.
Built-In 6000mAh Battery: No more external batteries or power cables. The high-capacity 16.8V Li-ion pack delivers up to 4 hours of field operation on a single charge.
Rugged IP68 Waterproof Construction: Fully sealed aluminum housing rated IP68—submersible, dustproof, and built to withstand rain, mud, and the harshest outdoor conditions.

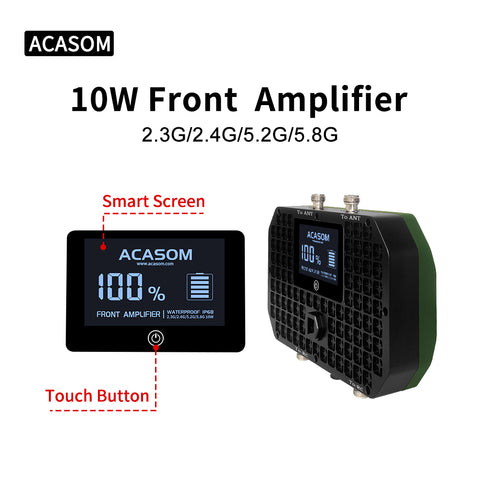

Smart LCD Display & Touch Control: The integrated smart screen shows real-time battery status and operating mode. Simple touch button interface for effortless control.
Clean, Low-Noise Amplification: Maintains signal integrity with <2.2dB noise figure and excellent EVM (3% @33dBm), ensuring boosted range without compromising video quality or control responsiveness.

Technical Specifications:

Parameter	2.3-2.5GHz Band	5.0-5.9GHz Band
Frequency Range	2.3-2.4GHz / 2.4-2.5GHz	5.0-5.3GHz / 5.7-5.9GHz
Max Output Power	40 dBm (10 W)	40 dBm (10 W)
Receiving Gain (RX)	16 dB ± 1	16 dB ± 1
Transmission Gain (TX)	19 dB ± 1	19 dB ± 1
Input Trigger Power	3 dBm – 23 dBm	3 dBm – 23 dBm
Noise Figure	< 2.2 dB	< 2.2 dB
EVM	3% @33dBm (802.11g)	3% @33dBm (802.11a)

Common Specifications
Battery Capacity	6000mAh / 16.8V Li-ion
Operating Time	Up to 4 Hours
Charging Voltage	16.8V / 3A (IP68 Aviation Plug)
Current Consumption	<2.2A @40dBm Output
TX/RX Switch Delay	< 1 µs
Waterproof Rating	IP68 (Submersible)

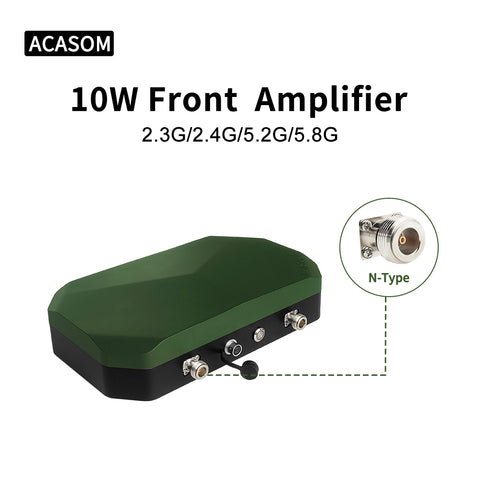

RF Connectors	N-Female (Dual Ports)
Battery Status	LCD Screen Display
Operating Temperature	-30℃ ~ +70℃

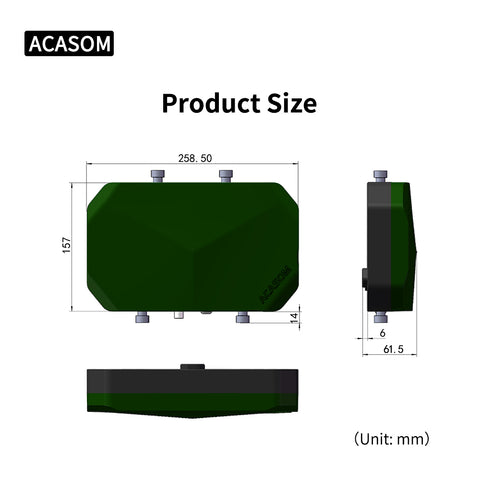

Dimensions	285.5 x 157 x 61.5 mm
Shell Material	Aluminum
Net Weight	1.5 kg

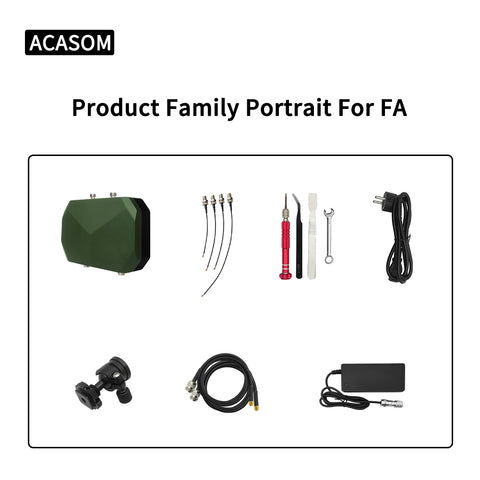

What's in the Box:

10W Repeater ×1
Wiring Harness Set ×1
Tool Kit ×1
Connectors ×2
Charger ×1
1-meter Cable ×2
Power Cord ×1

Field-Ready Features:

Dual-Port Design: Port 1 handles 2.3/2.4GHz; Port 2 handles 5.2/5.8GHz—both active simultaneously
Smart LCD Screen: Live battery percentage and operating status at a glance
Touch Button Interface: Simple, sealed controls that work even with gloves

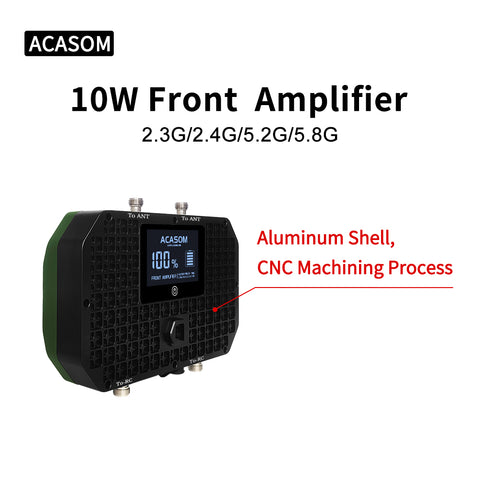

All-Aluminum Chassis: Acts as a massive heatsink for passive cooling during extended use
IP68 Waterproofing: Fully sealed against water and dust—use in rain, snow, or dusty environments

Ideal For:

Long-Range FPV Pilots: Extend both control (2.4GHz) and video (5.8GHz) links simultaneously
Professional Drone Operators: Reliable field amplification for mapping, inspection, and survey missions
Search & Rescue Teams: Rugged, self-contained unit ready for deployment in any weather
Event & Cinematography Drones: Ensure interference-free links in crowded RF environments

Simple Operation:

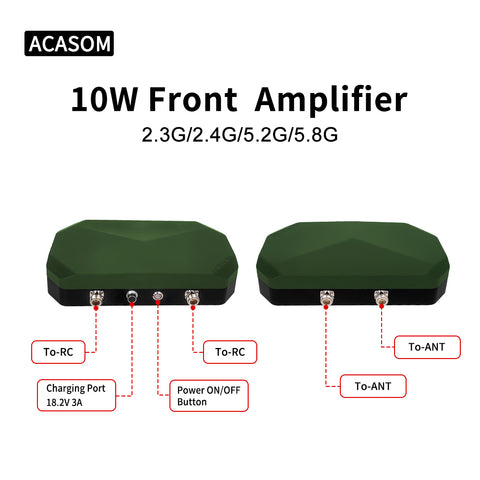

Connect: Attach your RC/transmitter to the "To-RC" ports and antennas to the "To-ANT" ports
Power On: Press the touch button; the LCD screen illuminates
Fly: Experience dramatically extended range with clean, 10W boosted signals

Ready for Takeoff?
Stop wrestling with multiple amplifiers and external batteries. The ACASOM 10W Quad-Band Repeater Front Amplifier is the all-in-one field solution you've been waiting for. Click 'Add to Cart' now and take your FPV range to the next level!
