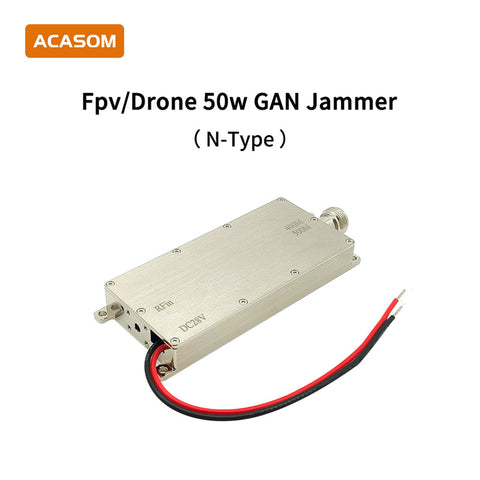

The 1100MHz-1300MHz GaN RF Interference N-Type Drone Jamming Blocker Module is the definitive high-performance jamming solution, designed to effectively disrupt RF signals in the 1100-1300 MHz frequency range. This module's GaN technology delivers high output power with minimal power consumption and efficient thermal management, making it the ideal choice for extended operation in demanding environments.

Frequency Range: This module operates within the 1100-1300 MHz band, ideal for RF interference in targeted applications.

Latest in GaN Technology: This product provides high power output with low energy consumption and heat generation.

N-Type Connector: This product ensures robust connectivity and is compatible with diverse jamming and interference systems.

High Power Output: This product is highly effective for long-range signal disruption and enhances interference capabilities.

Thermal Management: Built-in heat dissipation ensures stable, continuous performance.

Number	Items	Specifications
1	Frequency Range	1100-1300MHz
2	Operating Voltage	28V
3	Flatness	±0.5dB
4	Output Power	47dBm
5	Current	3.6A @28V, 47dBm
6	Efficiency	45%@47dBm
7	LED State	Red
8	Operating Temperature	-30℃～85℃
9	Storage Temperature	-40℃～150℃
10	Operating Humidity	＜95%RH
11	RF PORT	N Type
12	Power Socket	15cm red/black wire
13	Shell Material	Aluminum
14	Shell Size	128.55317mm
15	Net Weight	0.25Kg
