PRODUCT DETAILS

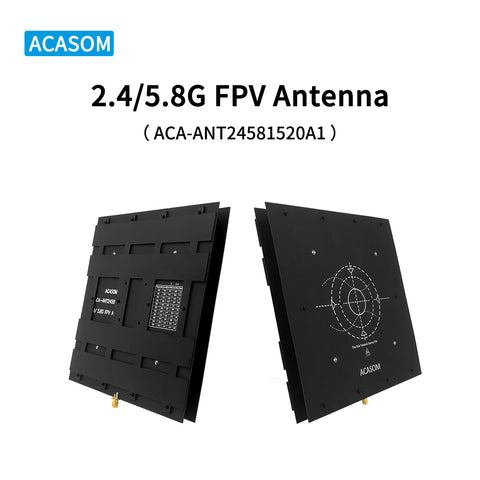

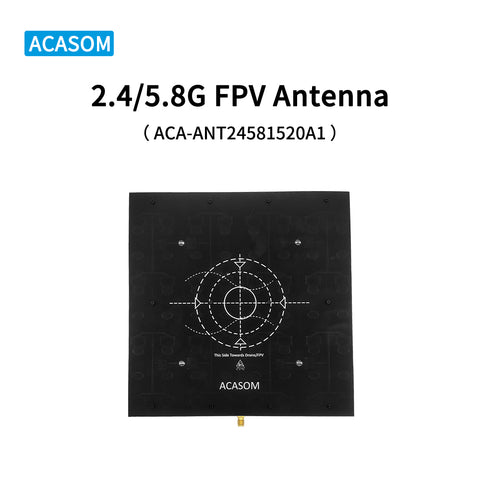

The ACASOM 2.4G/5.8G High-Gain Dual-Band Drone Antenna V2 is engineered for drone enthusiasts and professionals who demand maximum range and signal penetration. With an exceptional 15dBi gain on the 2.4GHz band and a powerful 20dBi gain on the 5.8GHz band, this antenna is your ultimate solution for pushing the boundaries of FPV flight and achieving crystal-clear, long-range video transmission and control.

Key Features

Exceptional High Gain: Delivers 15dBi at 2.4GHz for robust control links and 20dBi at 5.8GHz for ultra-long-range, low-interference video transmission.
Dual-Band Versatility: Seamlessly covers 2.4-2.5GHz and 5.15-5.85GHz frequencies, ensuring compatibility with a wide range of FPV systems and controllers.
Focused Signal Beam: Features a precise radiation pattern with 27° HPBW at 2.4GHz and a narrow 13° HPBW at 5.8GHz for concentrated signal strength and extended reach.
High Efficiency & Low VSWR: Maintains ≥90% efficiency at 2.4GHz and <2.0 VSWR across both bands, ensuring optimal power transfer and minimal signal loss.

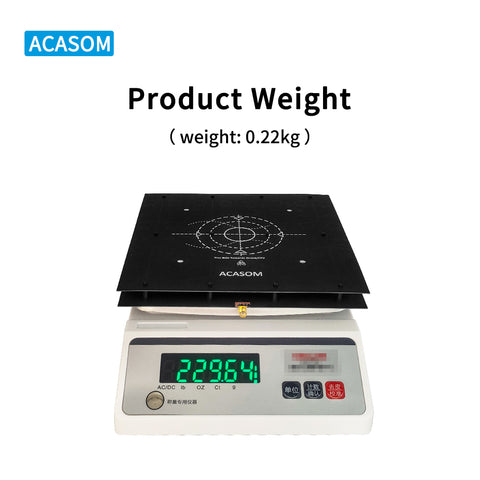

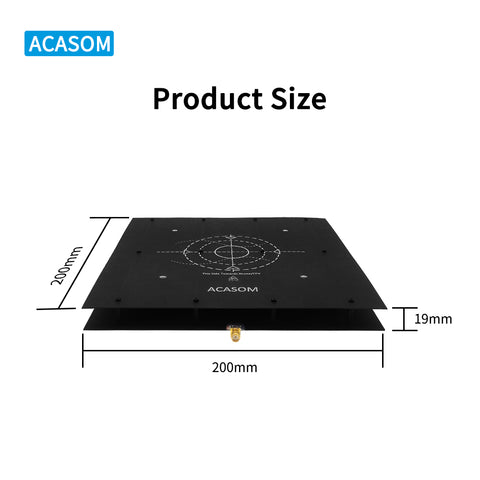

Robust Construction: Built into a durable housing (200×200×19mm, 230g) with an SMA-Female connector, designed to withstand rigorous outdoor use.
High Power Handling: Supports up to 30W input power, suitable for high-output video transmitters and demanding professional applications.

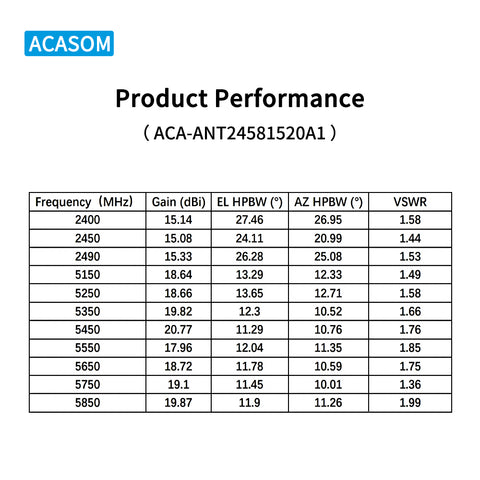

Technical Specifications

Parameter	2.4G Band	5.8G Band
Frequency Range	2400 - 2500 MHz	5150 - 5850 MHz
Gain	15 dBi	20 dBi

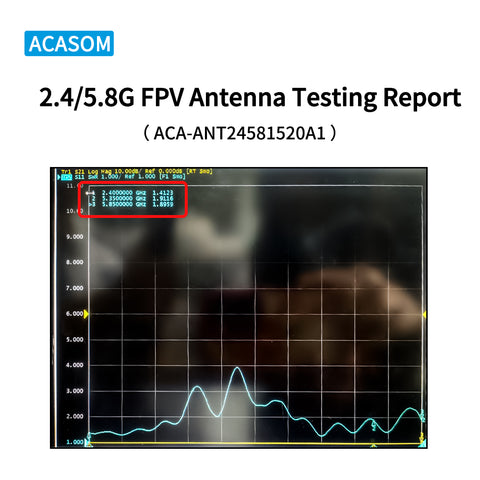

VSWR	< 2.0	< 2.0
Efficiency	≥ 90%	≥ 80%
Polarization	Vertical	Vertical
EL HPBW	27°	13°
AZ HPBW	27°	13°
Front-to-Back Ratio	15 dB	20 dB
Input Impedance	50 Ω	50 Ω
Power Handling	30 W	30 W

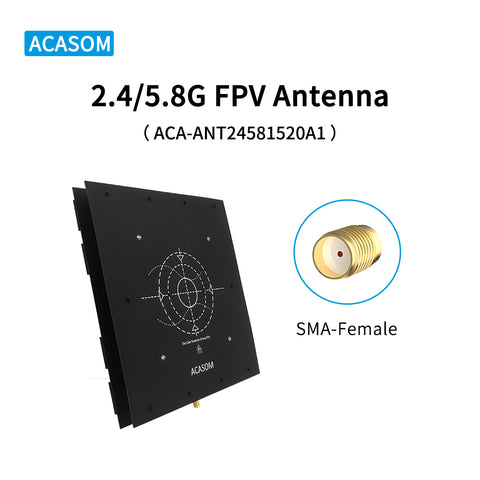

Connector Type	SMA-Female

Applications

Long-Range FPV Exploration: Ideal for pilots who fly beyond standard visual range, requiring stable control and video links.
FPV Racing & Freestyle: Provides a competitive edge with a strong, focused signal that minimizes drop-outs in challenging environments.
Aerial Cinematography: Ensures a reliable HD video feed for professional drone filming and broadcasting.
Search & Rescue Operations: Delivers critical, long-distance connectivity for drones used in emergency response and mapping.
Industrial Inspections: Supports reliable data transmission for infrastructure, wind turbine, and solar farm inspections.

Advantages

Unmatched Range: The extremely high gain translates to significantly extended operational distance.
Signal Precision: The narrow beamwidth focuses energy like a "signal laser," reducing noise and improving performance in the desired direction.
Dual-Band Reliability: Offers the flexibility to use either band for control or video, adapting to local interference conditions.
Professional Grade: Built to meet the needs of serious pilots and commercial operators.

Why Choose ACASOM?

Performance-First Design: Our antennas are engineered with a singular focus: to deliver the best possible signal performance.
Rigorous Testing: Every unit is tested to ensure it meets our strict specifications for gain, VSWR, and efficiency.
Proven Durability: We use high-quality materials to ensure our products can handle the demands of real-world flight.
Expert Support: We are passionate about FPV and are here to provide technical support and advice.

Package Includes

1× ACASOM 2.4G/5.8G High-Gain Dual-Band Drone Antenna V2
1× User Manual

Unlock the full potential of your FPV system with the ACASOM High-Gain Dual-Band Antenna V2 – engineered for those who refuse to accept limits.
