Description

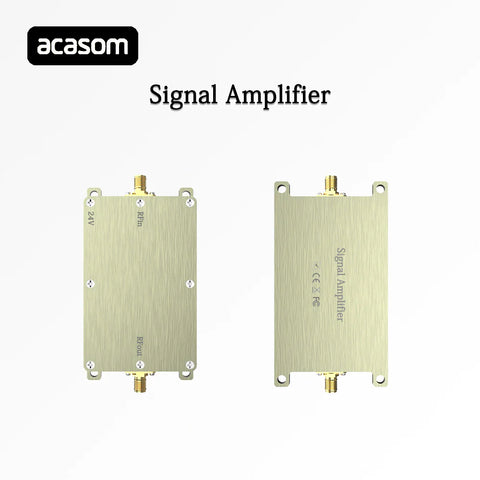

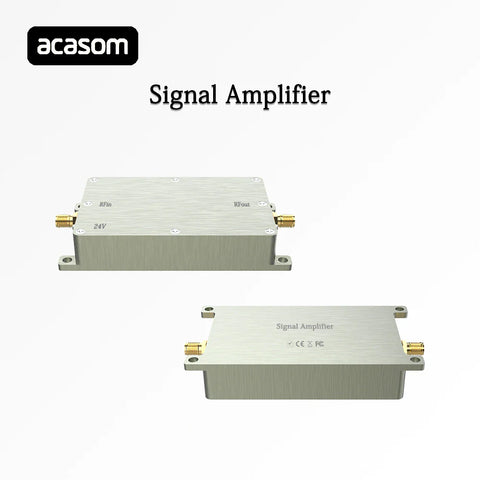

ACASOM 2.5-2.7Ghz Unidirectional Amplifier FOR WiFi/ DRONE

Only the Transmitting Channel (TX), NO RX

Frequency：2.5-2.7Ghz

RFOUT POWER=45/46dBm（30/40W）

ACASOM accepts customizing the power you need！

SPECIFICATION

Number	Items	Specifications
1	Frequency Range	2.5-2.7Ghz
2	Operating Voltage	24V/28V
3	Gain(S21)	40±1dB
4	Input Return Loss(S11)	-15dB
5	Flatness	±0.5dB
6	Output Power	45/46dBm
7	Current	2.8A@24V,45dBm 3.2A@28V,46dBm
8	Efficiency	45%@45/46dBm

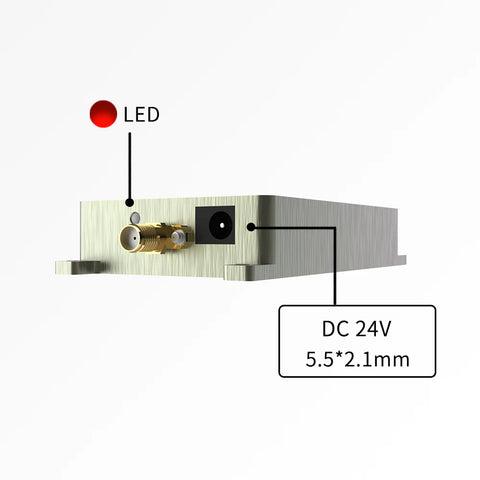

9	LED State	Red
10	Operating Temperature	-30℃～85℃
11	Storage Temperature	-40℃～150℃
12	Operating Humidity	＜95%RH
13	RF Connector	Input： SMA-Female; Output： SMA-Female
14	Power Socket	15cm red/black wire
15	Shell Material	Aluminum

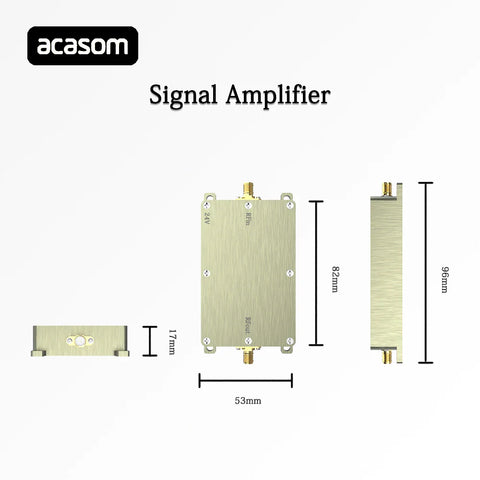

16	Shell Size	965317mm
17	Net Weight	0.15Kg

1 24V /4A power supply.

2 Heat dissipation is recommended, such as adding a heat sink or radiator fan.

3 Antenna should be screwed first, then plug the power adapter, and finally connect the device.

4 The output could reach 47dBm, when input power is10dBm or 11dBm (default gain is 37dB).

INCLUDE: 1* Power Amplifier
