Break Through the Range Barrier: 10W Pure Power for 6-7.2GHz FPV Video Transmission

Is your FPV video link struggling to reach those distant mountain peaks or penetrate dense foliage? The ACASOM 6-7.2GHz 10W Broadband FPV VTX Amplifier delivers the raw power you need to push your video transmission to its absolute limits. Engineered specifically for the critical 6-7.2GHz spectrum—covering emerging 6GHz FPV bands and extending 5.8GHz performance—this compact, high-efficiency amplifier boosts your VTX output to a massive 40dBm (10W) with exceptional signal purity.

Whether you're pushing for personal bests in long-range exploration or need reliable video for professional drone operations, this amplifier ensures your video feed stays crystal-clear when it matters most.

Why This Amplifier Dominates the 6-7.2GHz Band:

Massive 10W Output Power: Delivers a clean 40dBm (10W) of RF power, dramatically extending your video transmission range and penetrating through obstacles that stop lower-power systems.
Broadband 6-7.2GHz Coverage: Perfectly matched for 6GHz FPV systems, extended 5.8GHz applications, and emerging 7GHz video links—future-proof your setup for the next generation of FPV.

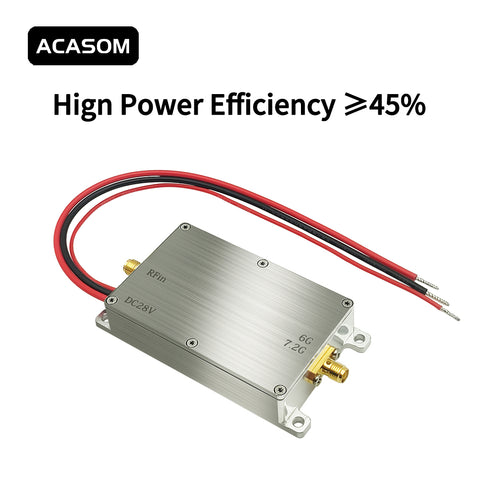

High-Efficiency GaN Technology: Achieves ≥45% power efficiency at full output, meaning less heat generation and lower current draw from your flight battery.
Massive 38dB Gain: A powerful 38dB gain stage ensures your existing VTX signal is boosted to maximum power with minimal added noise.

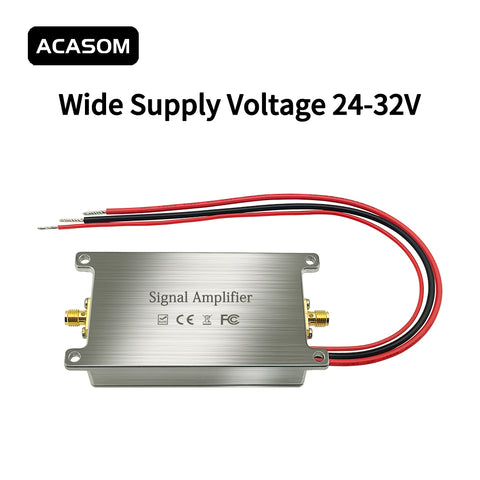

Wide Voltage Compatibility: Accepts 24-28V DC input (with control line support), making it adaptable to various drone power architectures.
Ultra-Compact & Lightweight: Housed in a precision aluminum chassis measuring just 90x46x17mm and weighing only 120g—ideal for integration into tight FPV builds.

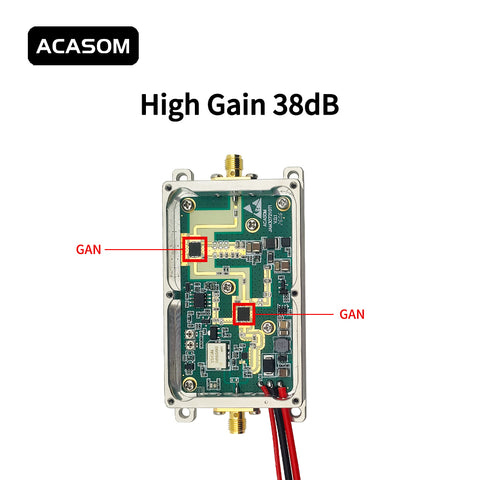

GaN Semiconductor Technology: Built with advanced Gallium Nitride (GaN) devices for superior linearity, efficiency, and thermal performance compared to traditional GaAs amplifiers.

Technical Specifications:

Parameter	Specification

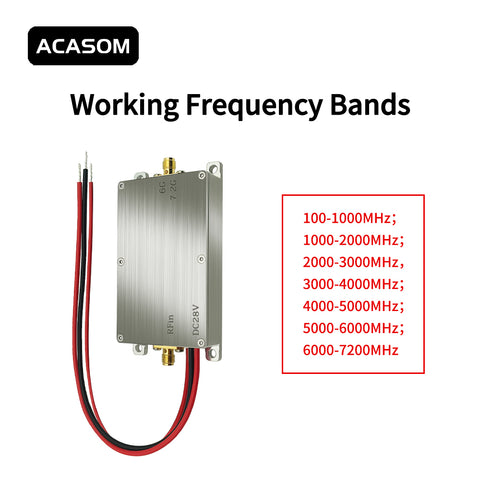

Frequency Range	6000 – 7200 MHz
Output Power (P1dB)	40 dBm (10 W)
Gain (S21)	38 dB ± 1
Input Return Loss (S11)	≤ -15 dB
RF Input Power Range	-13 dBm to +10 dBm
Efficiency	≥ 45% @ 40dBm
Operating Voltage	24 – 28 V DC
Current Consumption	~0.8 A @ 28V, 40dBm Output
LED Indicator	Red (Operating)
RF Connectors (Input/Output)	SMA Male
Power Connector	AWG18 20cm Red/Black Wire
Control Line	3-28V 20cm Red Wire
Operating Temperature	-30℃ ~ +85℃
Storage Temperature	-40℃ ~ +150℃

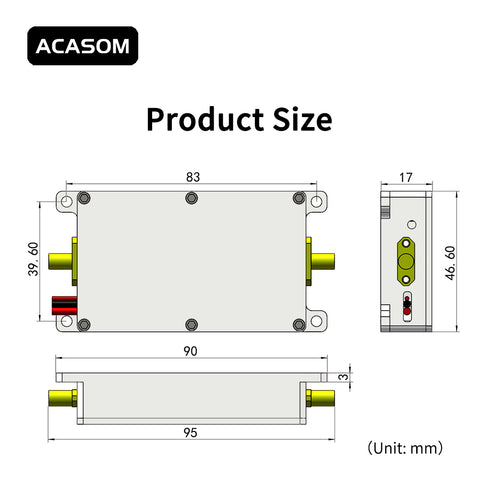

Dimensions	90 x 46 x 17 mm
Shell Material	Aluminum
Net Weight	120 g

Recommended Heatsink Dimensions:

For sustained full-power operation, we recommend a heatsink with the following minimum dimensions:

Base Thickness: ≥ 5mm
Fin Height: ≥ 20mm
Overall Footprint: Slightly larger than amplifier base (90x46mm)

Critical Usage Notes:

Power Supply Requirement: Use a stable 28V / 1A minimum DC power supply. For best results, a 28V / 2A supply is recommended for headroom.
Thermal Management is ESSENTIAL: At full 10W output, active cooling with a heatsink and radiator fan is REQUIRED for safe, sustained operation. The aluminum case alone is insufficient for continuous high-power duty.
Safe Connection Sequence: Always connect the antenna FIRST, then apply DC power, and finally enable your VTX/RF source.
Optimal Input Drive: For maximum clean output (up to 40dBm), provide an input signal of 3-4dBm (accounting for the 38dB gain). Avoid overdriving the input beyond +10dBm.

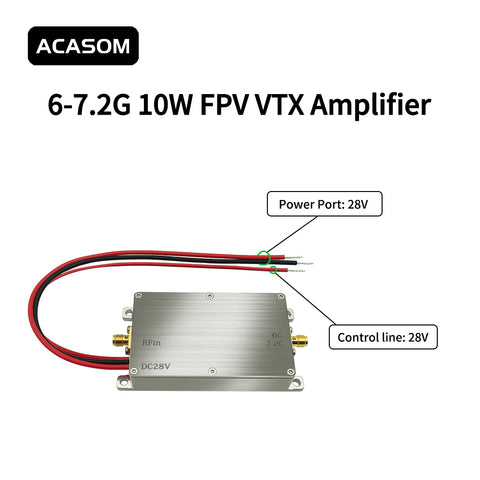

Control Line Function: The red control wire can be used to enable/disable the amplifier with a 3-28V signal, allowing remote power management from your flight controller.

Ideal For:

Long-Range FPV Explorers: Extend 5.8GHz and 6GHz video links to their absolute maximum range
Professional Drone Operators: Ensure reliable HD video transmission for mapping, inspection, and cinematography
FPV Racing Teams: Overcome interference in crowded band conditions with massive link margin
Experimental & Research UAVs: High-power video telemetry for BVLOS operations
6GHz FPV Early Adopters: Be ready for the next generation of FPV video systems

Optional Accessories (Sold Separately):

Recommended Heatsink & Fan Kit
SMA Male-to-Male RF Cable
28V Power Supply (Various configurations)

Technical Notes:

Gain Flatness: Optimized for < ±1dB across the full 6-7.2GHz band
Return Loss: Excellent input matching ensures minimal VSWR interaction with your VTX
Harmonic Suppression: Internal filtering provides clean output with minimal harmonics

Ready to Reach New Distances?
Stop letting range anxiety limit your flights. The ACASOM 6-7.2GHz 10W Broadband FPV VTX Amplifier delivers the clean, powerful signal you need to explore further. Click 'Add to Cart' now and experience the difference real power makes!
