PRODUCT DESCRIPTION
Ensure reliable, all-direction connectivity for your drone or FPV system with the ACASOM 6-7GHz RHCP Omnidirectional Antenna. Operating across the 5800-7200MHz band, this antenna provides a consistent, low-gain (~2 dBi) signal in a true 360-degree horizontal pattern, eliminating the need for precise pointing. Its key feature is Right-Hand Circular Polarization (RHCP), which significantly reduces multi-path interference and signal fading caused by reflections—a common challenge in dynamic flight environments. Combined with a wide 120°+ vertical beamwidth and excellent VSWR < 1.5, this lightweight (17g) antenna is the ideal solution for maintaining a stable control and video link when your aircraft is maneuvering in all directions around the ground station.

KEY FEATURES

True 360° Omnidirectional Coverage: Provides seamless signal reception from any horizontal direction, perfect for circling flight or lost model scenarios.
Right-Hand Circular Polarization (RHCP): Mitigates signal nulls and dropouts caused by multi-path reflection, improving link reliability.
Wide Vertical Beamwidth: Over 120° elevation coverage helps maintain connection during aggressive climbs, dives, or when the aircraft is directly overhead.
Broadband & Efficient: Covers 5.8-7.2GHz with high radiation efficiency (≥90%) and low VSWR for clean signal transmission.
Lightweight & Durable: Weighs only 17 grams with a compact form factor (40x100mm), designed for airborne use.

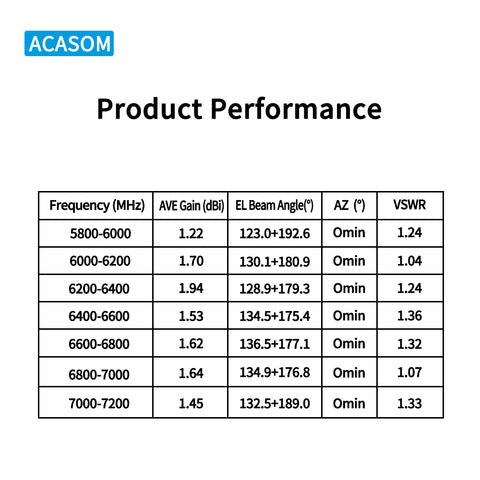

DETAILED PERFORMANCE SPECIFICATIONS

Parameter	Specification
Model Reference	ACA-ANT60702RHCP-A1 (Assumed from description)
Frequency Range	5800 - 7200 MHz
Average Gain	~1.2 - 1.9 dBi (Approx. 2 dBi nominal)
Polarization	Right-Hand Circular (RHCP)
Horizontal Beamwidth	360° (Omnidirectional)
Vertical Beamwidth	~123° - 192° (Wide elevation coverage)
VSWR	< 1.5 (1.04 typical at 6000-6200MHz)
Efficiency	≥ 90%
Impedance	50 Ω
Power Handling	30 W

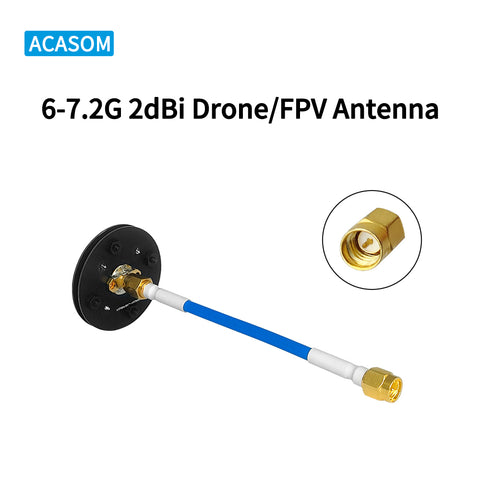

Connector	SMA-Male

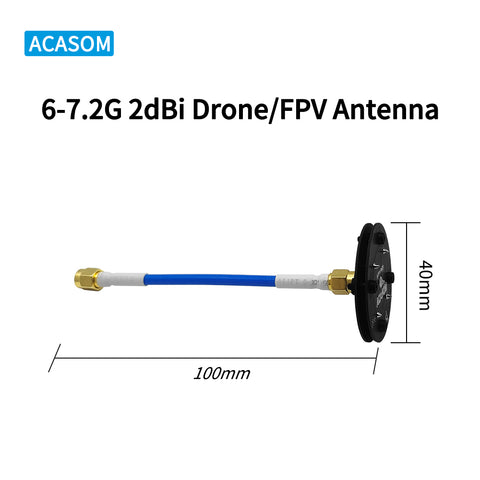

Dimensions (Dia. x H)	~40 x 100 mm

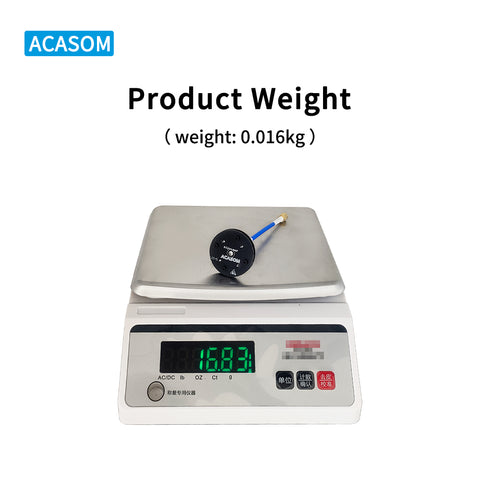

Weight	17 g

TYPICAL APPLICATIONS

Drone & FPV Systems requiring 360° control/video link
Ground Station base antennas for multi-rotor aircraft
Applications where multi-path signal rejection is critical
General wireless communication needing omnidirectional, circularly polarized coverage.
