The 600MHz-700MHz N-type GaN FPV Drone Signa Jammer Blocking Module is engineered for advanced jamming capabilities in the UHF frequency range. It offers excellent power efficiency, low heat output, and strong stability. With its compact and durable design, the module is suitable for versatile deployment in both portable and fixed systems, ensuring reliable and long-lasting signal disruption.

Frequency Range: Operates within the 600-700 MHz spectrum, effectively covering critical UHF channels for reliable signal jamming.

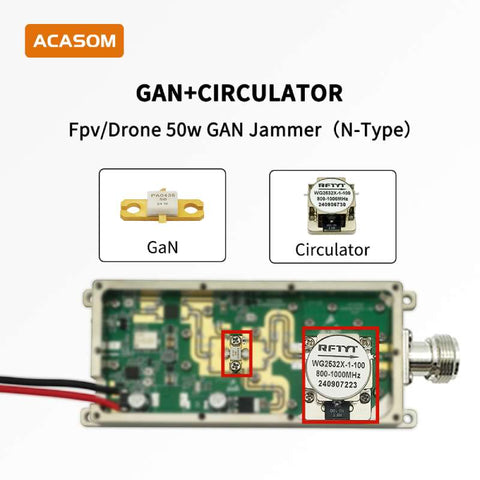

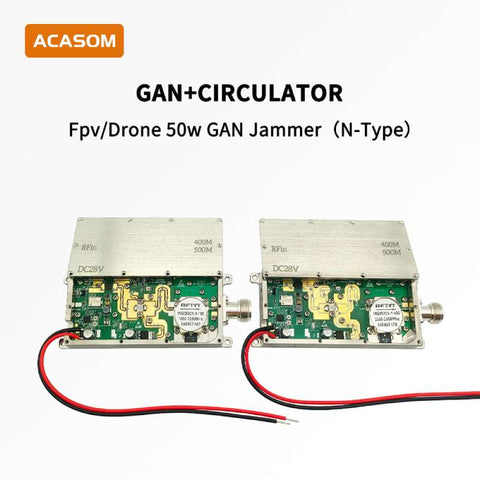

High-Efficiency GaN Technology: Offers low power consumption, minimal energy loss, and improved thermal management to ensure sustained performance.

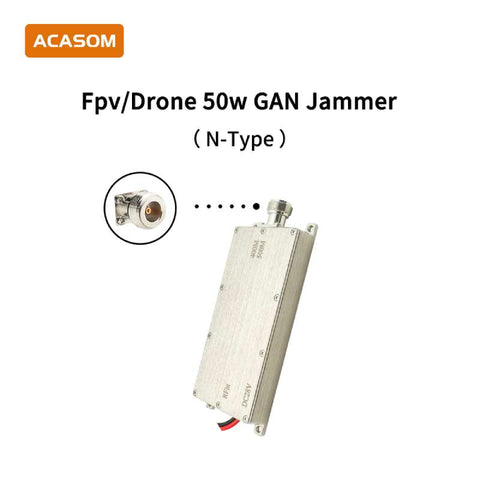

Rugged N-type Connector: Ensures a secure and stable connection for consistent jamming capabilities in demanding environments.

Durable Construction: Built to withstand harsh conditions, making it suitable for both mobile and fixed applications.

Compact and Lightweight Design: Features a streamlined structure that easily integrates into existing systems for flexible operational use.

Enhanced Jamming Capability: Provides effective jamming across the entire frequency range, ensuring dependable disruption of target signals.

Wide Operating Temperature Range: Maintains high stability and reliability, even in extreme environmental conditions.

Number	Items	Specifications
1	Frequency Range	600-700MHz
2	Operating Voltage	28V
3	Flatness	±0.5dB
4	Output Power	47dBm
5	Current	3.6A @28V, 47dBm
6	Efficiency	45%@47dBm
7	LED State	Red
8	Operating Temperature	-30℃～85℃
9	Storage Temperature	-40℃～150℃
10	Operating Humidity	＜95%RH
11	RF PORT	N Type

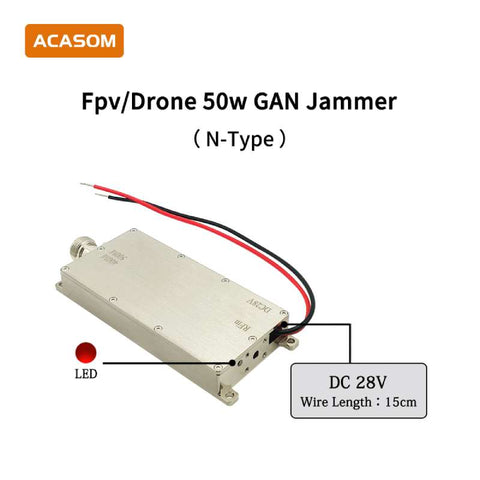

12	Power Socket	15cm red/black wire
13	Shell Material	Aluminum

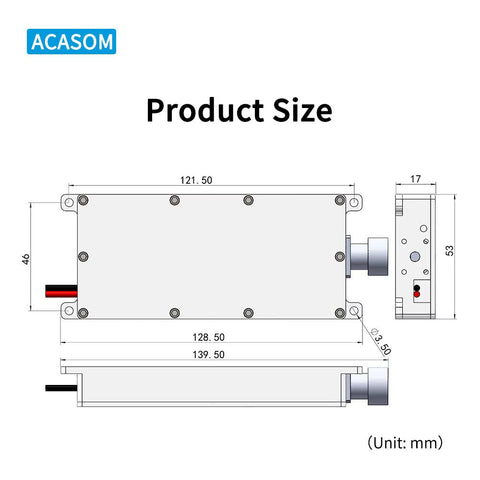

14	Shell Size	128.55317mm
15	Net Weight	0.25Kg
