PRODUCT DESCRIPTION

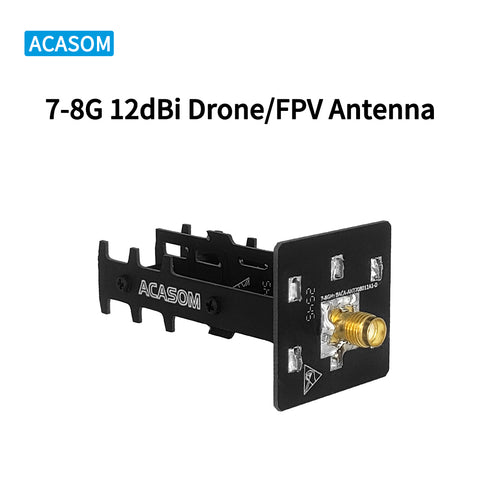

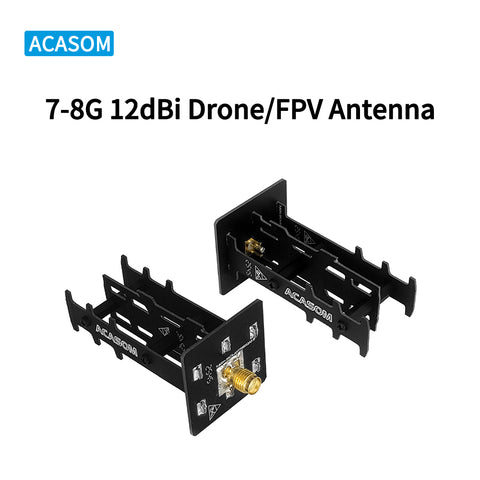

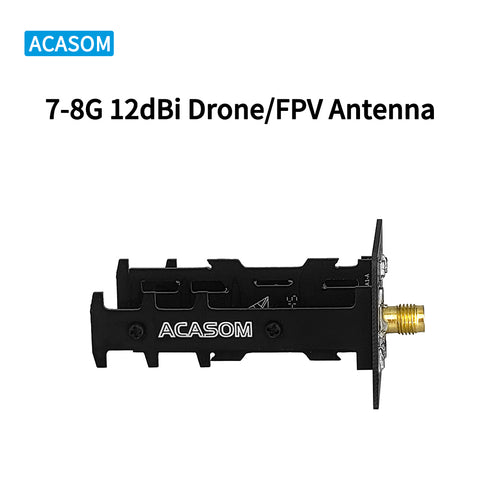

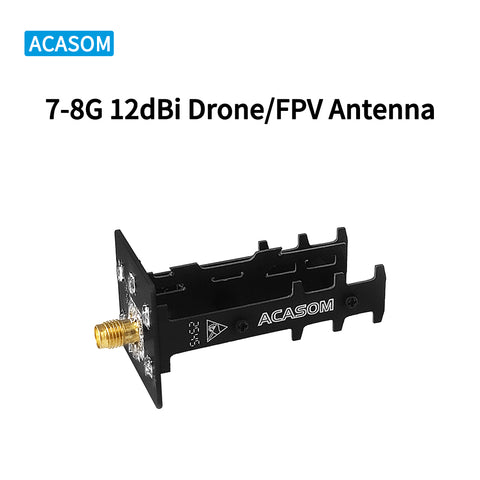

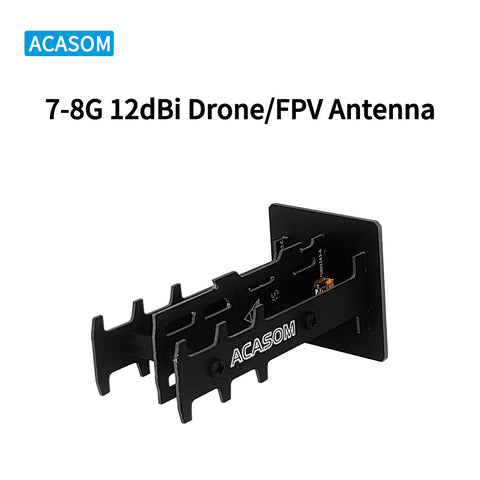

The ACASOM 7-8GHz Directional Panel Antenna is engineered for professional point-to-point, point-to-multipoint, and sensor applications requiring reliable performance across a wide spectrum. Operating from 6500 to 8000 MHz, this compact antenna delivers a peak gain of over 12 dBi with consistent coverage. It features a balanced radiation pattern with a typical 3-dB beamwidth of approximately 50°, offering an optimal blend of gain, beamwidth, and easy alignment. With an excellent VSWR < 1.5 and high radiation efficiency ≥ 90%, it ensures maximum power transfer and stable link performance. Weighing only 7.8 grams, this ultra-lightweight and robust antenna is an ideal solution for fixed wireless access, radar systems, and specialized data links where efficiency and precision are paramount.

KEY FEATURES

Wideband High Performance: Covers the entire 6.5-8 GHz range with a peak gain of 12.4 dBi for versatile application support.
High Efficiency & Low Loss: ≥90% radiation efficiency and low VSWR ensure minimal signal loss and optimal system performance.
Optimized Directional Pattern: Provides a focused beam with ~50° beamwidth for good gain and manageable alignment.
Ultra-Light & Compact: Exceptionally lightweight at 7.8g with a compact 55x40x30mm size for easy deployment and minimal load.
Robust Power Handling: Capable of handling up to 30W of input power for demanding transmission scenarios.

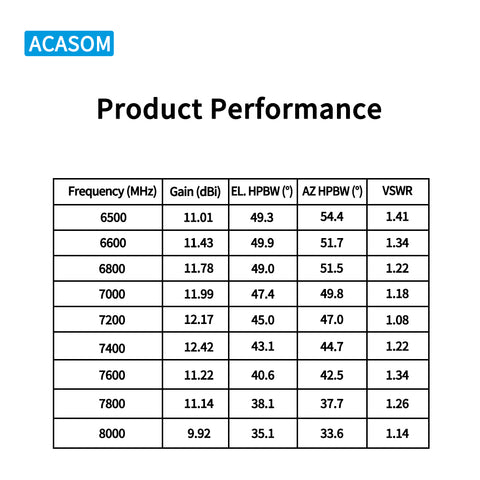

DETAILED PERFORMANCE SPECIFICATIONS

Parameter	Specification
Working Frequency	6500 - 8000 MHz
Peak Gain	12.42 dBi (at 7400 MHz)
VSWR	< 1.5 (1.08 typical at 7200 MHz)
Efficiency	≥ 90%
Polarization	Linear (Vertical)
Elevation HPBW	~50° (Varies from 35° to 50° across band)
Azimuth HPBW	~54° (Varies from 34° to 54° across band)
Front-to-Back Ratio	15 dB
Impedance	50 Ω
Power Handling	30 W

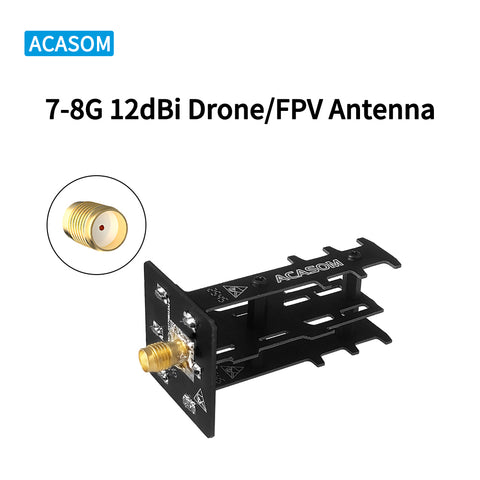

Connector	SMA-Female

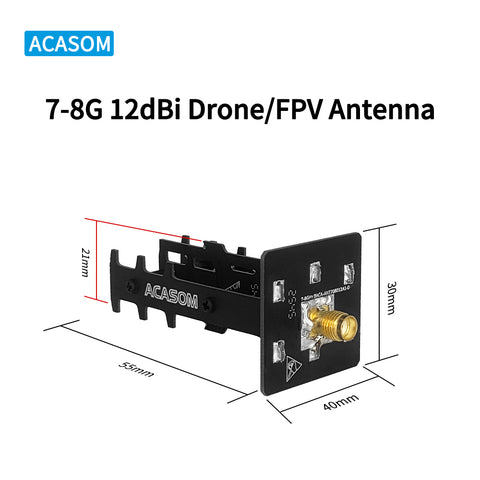

Dimensions	55 x 40 x 30 mm

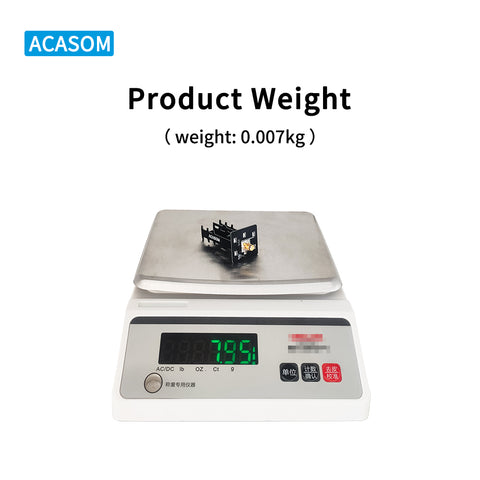

Weight	7.8 g

TYPICAL APPLICATIONS

Point-to-Point and Point-to-Multipoint Communication Links
Fixed Wireless Access (FWA) and Backhaul
Radar and Sensor Systems
Test & Measurement Equipment
Professional Wireless Data Links

This antenna delivers a reliable, high-efficiency solution for critical wideband microwave communication needs in a remarkably lightweight package.
