PRODUCT DETAILS
DESCRIPTION
This 902-928MHz Cavity Filter is engineered to deliver critical interference protection for your Helium Network and 915MHz LoRaWAN systems. Designed with the professional installer in mind, it features an ultra-low insertion loss of 1.0dB and provides exceptional out-of-band suppression of 60dB at just 10MHz from the band edge. Housed in a rugged aluminum construction with N-Female connectors on both ports, this indoor filter ensures maximum signal integrity and system performance by effectively blocking strong adjacent interference from cellular and other RF services.
Why a High Out-of-Band Rejection Filter is Essential
The primary function of a filter is to eliminate interference signals. Therefore, the higher the out-of-band rejection and the closer this performance is to your working frequency band, the better. A filter that does not clearly specify this critical parameter is misleading; without significant rejection, it functions merely as a transmission line—offering low insertion loss but providing no real filtering protection for your network.
KEY FEATURES
Ultra-Low Insertion Loss: 1.0dB nominal loss preserves your valuable RF signal strength and hotspot efficiency.
High Out-of-Band Rejection: 60dB suppression near the band edge for effective blocking of close-in interference.
Built-In Surge Protection: Provides DC short circuit protection on RF ports, acting as a basic lightning arrestor.
Full Band Coverage: Optimized for the complete 902-928MHz (26MHz bandwidth) LoRa and Helium application range.
Robust Connectivity: Features N-Female connectors on both sides for reliable, low-loss connections in professional setups.

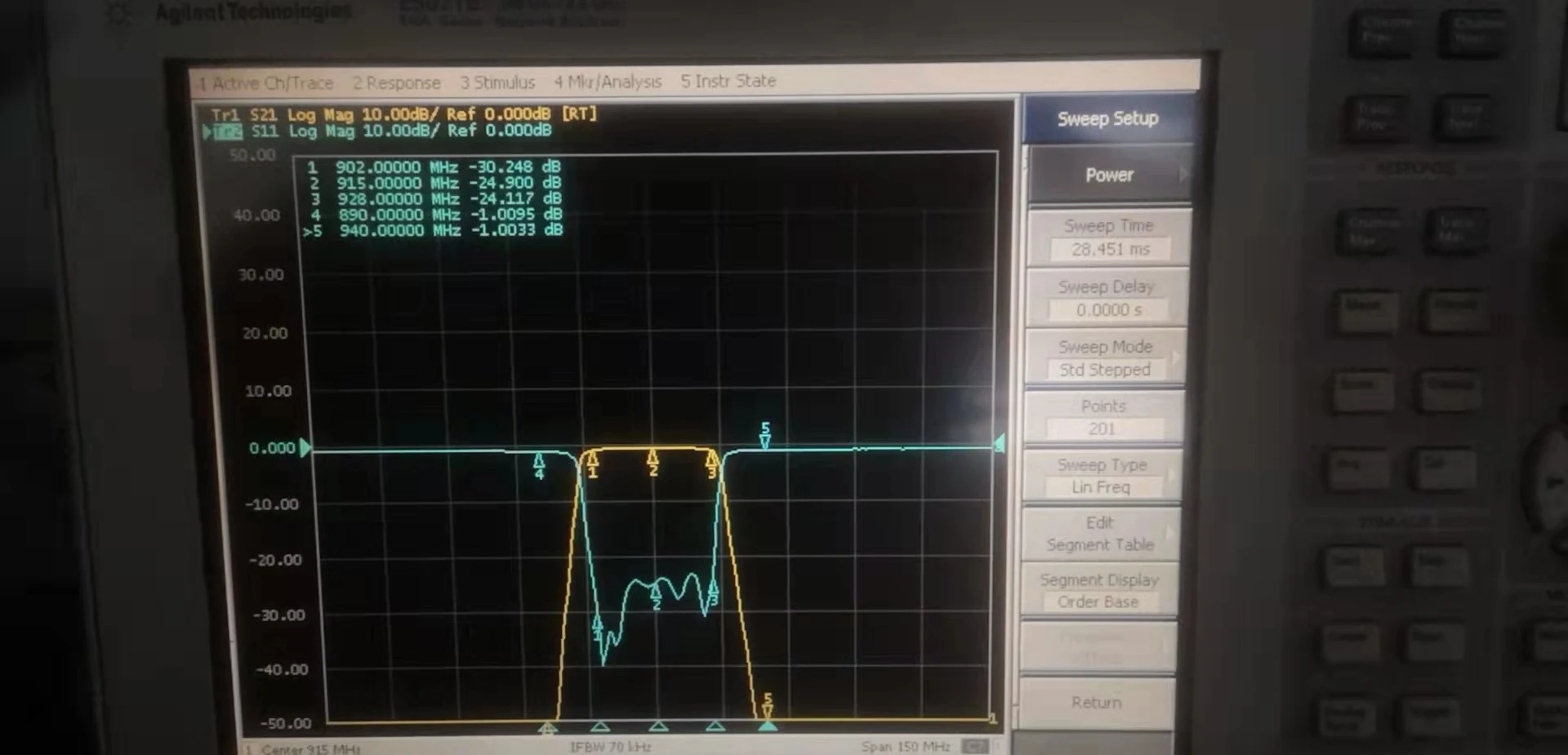

TECHNICAL SPECIFICATIONS
| Parameter | Specification | Details / Benefit |
|---|---|---|
| Target Frequency Band | 902 - 928 MHz | Perfect for Helium & North American LoRaWAN ISM band. |
| Insertion Loss | ≤ 1.0 dB | Ultra-low loss maximizes power transfer to the antenna. |
| Out-of-Band Rejection | 60 dB (at 10MHz offset) | High suppression of nearby interfering signals. |
| VSWR | ≤ 1.5 (Typical) | Good impedance matching for minimal signal reflection. |
| Power Handling | 20W (Typical) | Sufficient for standard transmitter power levels. |
| Port Protection | DC Short | Basic surge and lightning protector functionality. |
| RF Connectors | N-Female (x2) | Robust connectors for permanent, low-loss installations. |
| Housing Material | Rugged Aluminum | Durable construction for long-term reliability. |
| Intended Use | Indoor | For deployment in controlled environments. |
INCLUDED
1 x 902-928MHz Cavity Filter
Professional 915MHz N-Female Cavity Filter for Helium Network | ≤1.0dB Ultra-Low Loss | 60dB High Rejection
