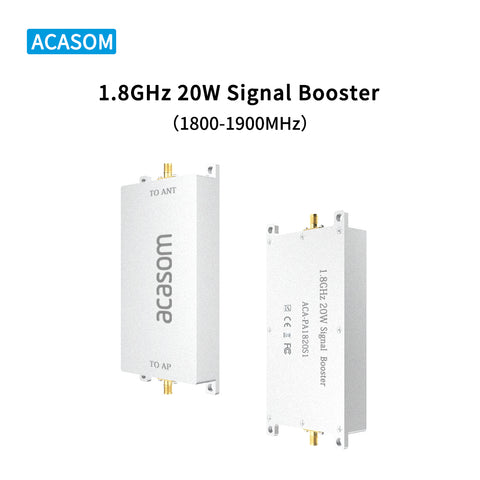

The ACASOM 1.8GHz Long-Range Signal Amplifier Module is a high-performance RF solution engineered to significantly boost the range, reliability, and signal integrity of drone telemetry and command links within the 1800-1900MHz frequency band.

This amplifier is specifically designed for unmanned aerial systems, enhancing signals for long-range UAV controllers, ground station data links, and critical telemetry transmission. By providing powerful amplification, it substantially extends the stable operational distance for BVLOS (Beyond Visual Line of Sight) flights, industrial inspections, and missions in challenging RF environments, ensuring continuous and clear communication between pilot and drone.

Ideal for professional drone operations requiring robust lower-band connectivity, such as agricultural drone fleets, infrastructure monitoring UAVs, and long-endurance mapping platforms. The ACASOM 1.8GHz Amplifier strengthens your command link, reduces signal dropouts, and is a key component for building reliable, extended-range drone communication systems.

TECHNICAL SPECIFICATIONS

#	Item	Specification
1	Frequency Range	1800-1900MHz
2	Operating Voltage	12-24V DC
3	Receiving Gain	18dB ±1
4	Transmission Gain	19dB ±1
5	Max Output Power (P1dB)	43dBm (20W)
6	Input Trigger Power	Min: 3dBm, Max: 20dBm
7	EVM (Signal Quality)	3% @37dBm
8	Noise Figure	<2.5dB
9	Current Supply	2.1A @ Pout 43dBm, 24V
10	TX/RX Switch Speed	<1 μs (For real-time control)
11	LED Indicator	TX: Green; RX: Red
12	Operating Temperature	-30℃ to +70℃
13	RF Connector	Input/Output: SMA-Female

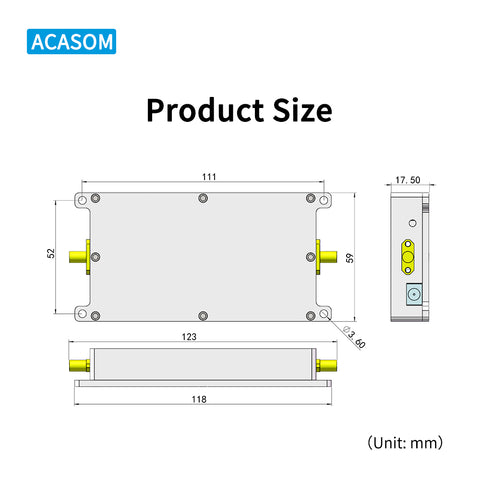

14	Shell Material & Size	Aluminum, 1185917mm
15	Net Weight	0.27kg

Test report

Receiving Gain

VSWR RX

Transmission Gain
VSWR TX

Output Power(20W)
