PRODUCT DESCRIPTION
Engineered for demanding outdoor and industrial environments, the ACASOM 2.4GHz Outdoor Signal Booster is a robust, high-performance amplifier designed to significantly extend the range and reliability of various wireless systems. Operating across the full 2400-2500MHz spectrum, it delivers a powerful 5W (37dBm) output with high 18dB gain on both transmit and receive paths. Featuring an exceptional ultra-low 2.0dB noise figure, this unit provides up to 60x signal amplification, dramatically improving link quality and coverage for drones, IEEE 802.11b/g/n WiFi networks, Bluetooth/ZigBee devices, and wireless camera systems. Built with durable N-Female connectors and a rugged IP-rated aluminum housing, it is powered conveniently via the included Bias Tee for seamless outdoor installation where long-range, stable communication is critical.

KEY FEATURES

Outdoor-Rated High Power: Delivers 5W (37dBm) output power for maximum signal penetration and extended operational range in open areas.
Exceptional Signal Clarity: <2.0dB ultra-low noise figure combined with 18dB TX/RX gain ensures superior sensitivity and clean signal amplification.
Multi-Protocol Universal Compatibility: Enhances performance for Drone FPV/Telemetry, WiFi, Bluetooth, ZigBee, and Wireless Cameras with a single device.
Rugged Outdoor Design: Features N-Female connectors and a sturdy aluminum shell built to withstand harsh environmental conditions.
Integrated Power Solution: Includes a Bias Tee for simplified DC power injection directly through the coaxial cable, reducing separate wiring needs.

PRIMARY APPLICATIONS

Long-Range Drone Operations & FPV Signal Enhancement
Outdoor WiFi Network Extension for Large Properties
Industrial Bluetooth and ZigBee Sensor Network Boosting
Wireless Security and Surveillance Camera Links

TECHNICAL SPECIFICATIONS

Parameter	Specification
Frequency Range	2400 - 2500 MHz
Output Power (P1dB)	37 dBm (5 W)
Transmit Gain (Tx)	18 dB ±1
Receive Gain (Rx)	18 dB ±1
Noise Figure	< 2.0 dB
Operating Voltage	12 - 24 V DC (via Bias Tee)
Input Power Range	3 dBm to 20 dBm
RF Connectors	Input: N-Female; Output: N-Female
Power Method	Via included Bias Tee (DC over coaxial cable)
Operating Temperature	-30℃ ~ +70℃

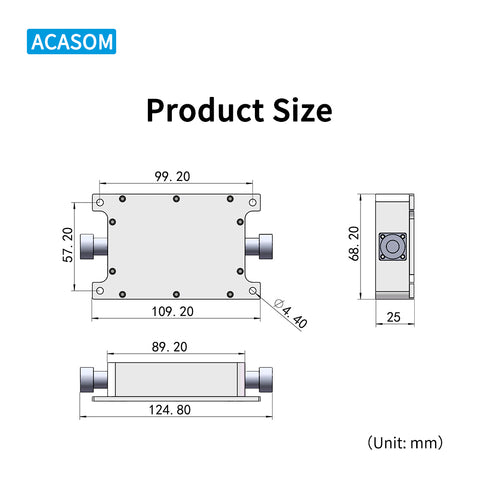

Dimensions	109.2 x 68.2 x 25 mm
Net Weight	0.30 kg

WHAT'S INCLUDED

1 x Outdoor 2.4GHz Signal Booster (N-Female)
1 x Bias Tee (for power supply)
1 x SMA Male to N-Female Connector Adapter
1 x IPEX to SMA Female Cable
1 x RG402 Coaxial Cable (20CM)
1 x EU/US Power Plug (for powering the Bias Tee)
