PRODUCT DESCRIPTION
Extend your wireless reach with the ACASOM 2.4GHz High-Power Signal Booster, engineered for maximum range and reliability. Operating across the 2400-2483.5MHz band, this amplifier delivers a powerful 5W (37dBm) output and a balanced 18dB gain on both transmit and receive paths. Featuring an ultra-low 2.5dB noise figure, it dramatically improves link quality and coverage—providing up to 50x power amplification for certified IEEE 802.11b/g/n WiFi systems, Bluetooth/Zigbee networks, and wireless video links. With a wide 8-18V input range, plug-and-play operation, and a rugged aluminum housing, it’s the ideal solution for eliminating dead zones and enhancing long-range connectivity for drones, wireless cameras, and enterprise WiFi networks.

KEY FEATURES

High Power & Range: 5W (37dBm) output power with 18dB TX/RX gain for maximum signal penetration and extended coverage.
Ultra-Low Noise: <2.5dB noise figure ensures superior signal clarity and receiver sensitivity.
Massive Signal Boost: Delivers up to 50x power amplification to overcome obstacles and distance.
Plug-and-Play Simplicity: Fully compatible with standard WiFi/Bluetooth devices; no software required.
Robust Industrial Design: Durable aluminum enclosure built for reliable operation in varied environments (-30℃ to +70℃).

PRIMARY APPLICATIONS

Long-Range Drone FPV & Telemetry Systems
WiFi / WLAN Network Extension and Repeater Solutions
Bluetooth and Zigbee Signal Boosting
Wireless Security Camera & Video Transmission Links

TECHNICAL SPECIFICATIONS

Parameter	Specification
Frequency Range	2400 - 2483.5 MHz
Output Power (P1dB)	37 dBm (5 W)
Transmit Gain (Tx)	18 dB ±1
Receive Gain (Rx)	18 dB ±1
Noise Figure	< 2.5 dB
Operating Voltage	8 - 18 V DC
Input Power Range	3 dBm to 20 dBm
RF Connectors	Input: SMA-Female; Output: RP-SMA-Female (or N-Type)
Power Connector	5.5*2.1mm DC Jack
Switching Delay	< 1 µs

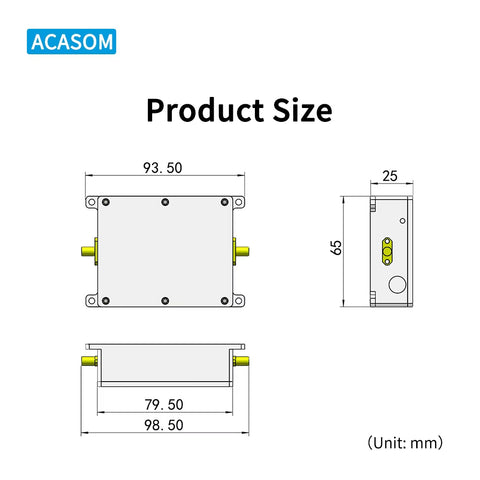

Dimensions	93.5 x 65 x 25 mm
Net Weight	0.25 kg

PACKAGE INCLUDES

For SMA Connector Version:

1 x 2.4GHz 5W Signal Booster (SMA)
1 x 2.4GHz 5dBi Antenna
1 x 12V 1A EU/AU Power Adapter
1 x RG402 Blue Coaxial Cable (20CM)

For N-Type Connector Version:

1 x 2.4GHz 5W Signal Booster (N-Type)
1 x 12V 1A EU/AU Power Adapter

2.4GHz 5W High Power WiFi & Drone Signal Booster Amplifier
