PRODUCT DESCRIPTION

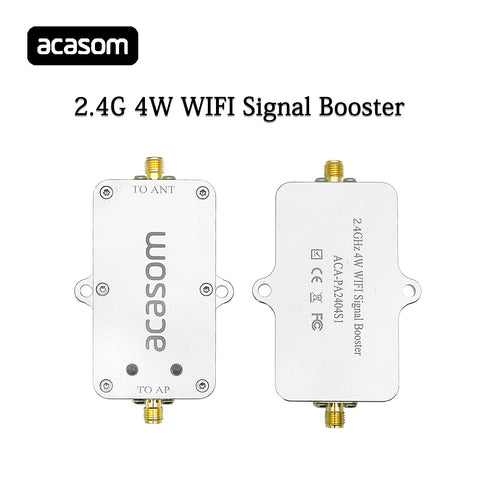

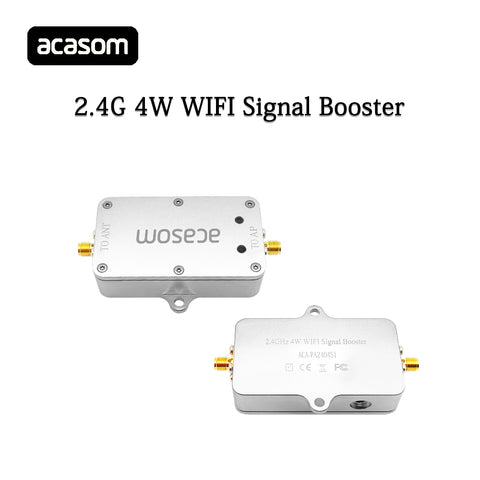

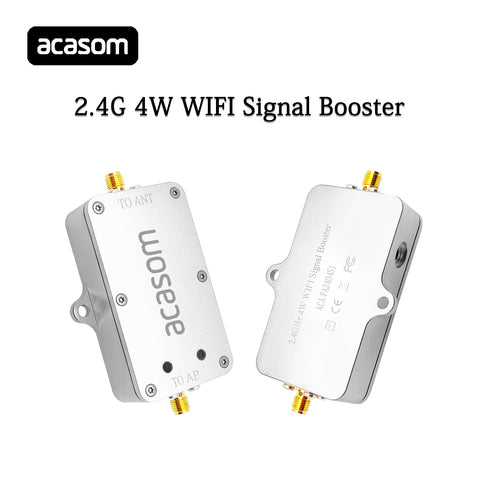

Enhance the coverage and reliability of your wireless networks with the ACASOM 2.4GHz High-Power Signal Booster. Operating across the 2400-2483.5MHz band, this amplifier delivers a strong 4W (36dBm) output with a balanced 18dB gain on both transmit and receive paths. Its ultra-low 2.5dB noise figure and 50x signal amplification dramatically improve link quality and extend the operational range for IEEE 802.11b/g/n WiFi, Bluetooth, Zigbee, and wireless video camera systems. Designed for plug-and-play operation with no software required, this compact and robust unit is the ideal solution for eliminating dead zones and ensuring stable connectivity in homes, offices, and commercial settings.

KEY FEATURES

High Power & Consistent Gain: 4W (36dBm) output power with symmetrical 18dB TX/RX gain for reliable, extended coverage.
Ultra-Low Noise Reception: <2.5dB noise figure ensures superior signal clarity and enhanced receiver sensitivity.
Massive Signal Amplification: Boosts signal strength by up to 50x to penetrate walls and overcome distance limitations.
Multi-System Compatibility: Works seamlessly with standard WiFi, Bluetooth, Zigbee, and wireless camera systems.
Compact & Robust Design: Durable aluminum enclosure built for reliable performance in varied environments.

PRIMARY APPLICATIONS

WiFi / WLAN Network Extension and Repeater Setup
Bluetooth and Zigbee Signal Boosting
Wireless Security Camera & Video Transmission Enhancement
Residential and Commercial Wireless Coverage Solutions

TECHNICAL SPECIFICATIONS

Parameter	Specification
Frequency Range	2400 - 2483.5 MHz
Output Power (P1dB)	36 dBm (4 W)
Transmit Gain (Tx)	18 dB ±1
Receive Gain (Rx)	18 dB ±1
Noise Figure	< 2.5 dB
Operating Voltage	8 - 18 V DC
Input Power Range	3 dBm to 20 dBm

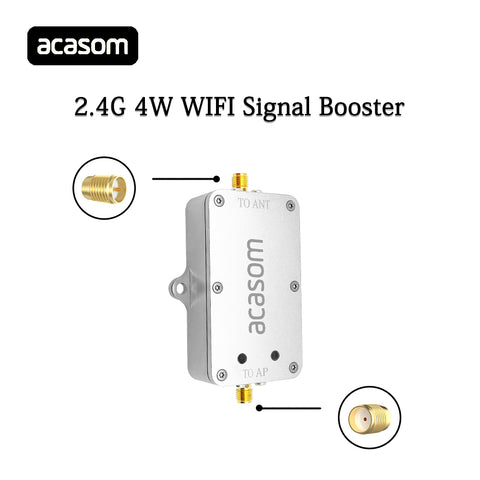

RF Connectors	Input: SMA-Female; Output: RP-SMA-Female

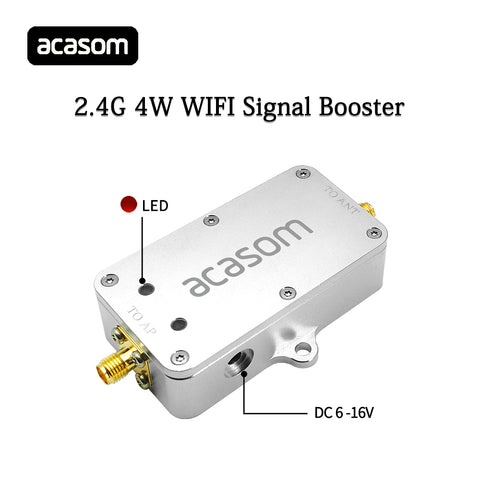

Power Connector	2.5*0.7mm DC Jack
Switching Delay	< 1 µs
Operating Temperature	-30℃ ~ +70℃

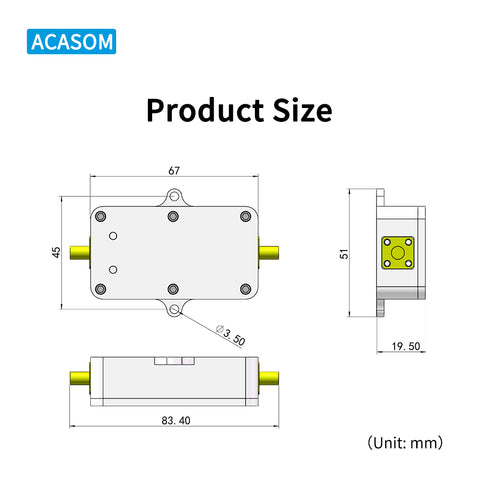

Dimensions	64.0 x 51 x 19.5 mm
Net Weight	0.15 kg

PACKAGE INCLUDES

1 x 2.4GHz 4W Signal Booster
1 x 2.4GHz 5dBi Antenna
1 x 12V 1A EU/AU Power Adapter
1 x RG402 Blue Coaxial Cable (20CM)

2.4GHz 4W WiFi Bluetooth Signal Booster and Range Extender
