PRODUCT DESCRIPTION

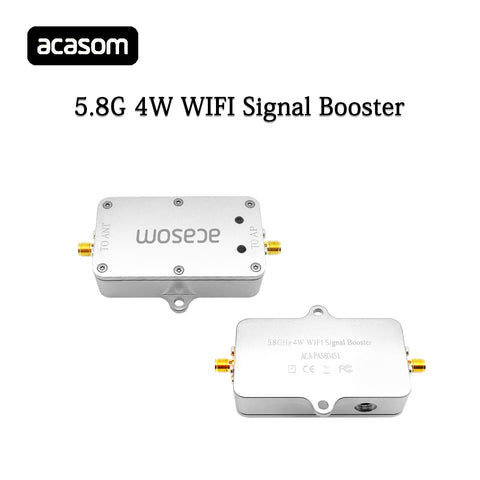

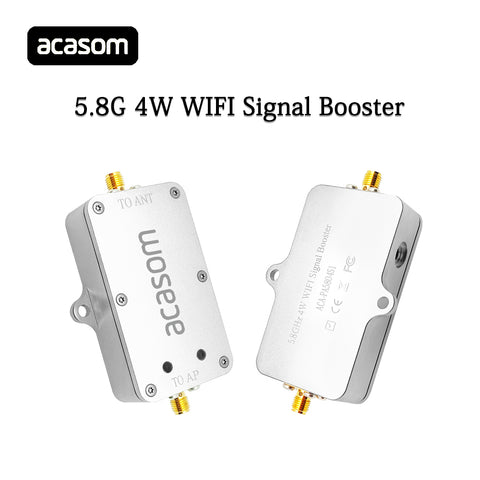

Boost the performance and range of your high-speed wireless networks with the ACASOM 5.8GHz Signal Booster. Engineered for the 5725-5850MHz band, this amplifier delivers a solid 4W (36dBm) output power with a balanced 17dB gain on both transmit and receive paths. Featuring an ultra-low 2.5dB noise figure, it provides up to 50x power amplification, significantly enhancing link quality, coverage, and reliability for modern IEEE 802.11 a/n/ac/ax (WiFi 6) systems and high-definition wireless video transmission. This plug-and-play solution is perfect for creating stable, long-range connections and eliminating dead zones in demanding home, commercial, and surveillance environments.

KEY FEATURES

High Power & Symmetrical Gain: 4W (36dBm) output with 17dB TX/RX gain for reliable, extended coverage and consistent bidirectional performance.
Optimized for Modern Networks: Designed for full compatibility with IEEE 802.11 a/n/ac/ax (WiFi 6) standards and wireless camera systems.
Ultra-Low Noise Figure: <2.5dB noise figure ensures exceptional signal clarity and superior receiver sensitivity.
Massive Signal Boost: Delivers up to 50x power amplification to overcome obstacles and interference for a stronger, more reliable link.
Simple Setup: True plug-and-play operation; no software or complex configuration required.

PRIMARY APPLICATIONS

Long-Range WiFi 6 / WLAN Network Extension
Wireless HD & IP Camera Signal Boosting
Point-to-Point Wireless Bridge Enhancement
Outdoor and Industrial Wireless Coverage

TECHNICAL SPECIFICATIONS

Parameter	Specification
Frequency Range	5725 - 5850 MHz
Output Power (P1dB)	36 dBm (4 W)
Transmit Gain (Tx)	17 dB ±1
Receive Gain (Rx)	17 dB ±1
Noise Figure	< 2.5 dB

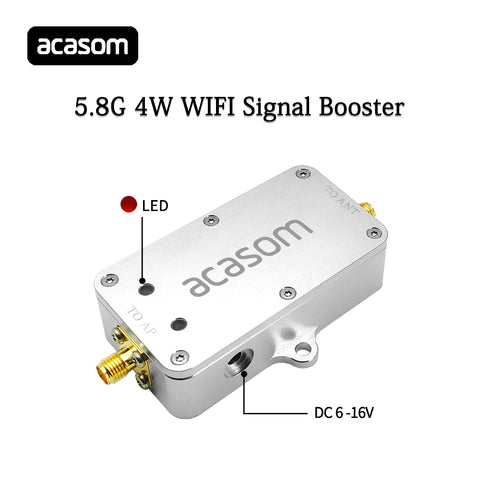

Operating Voltage	6 - 18 V DC
Input Power Range	3 dBm to 20 dBm

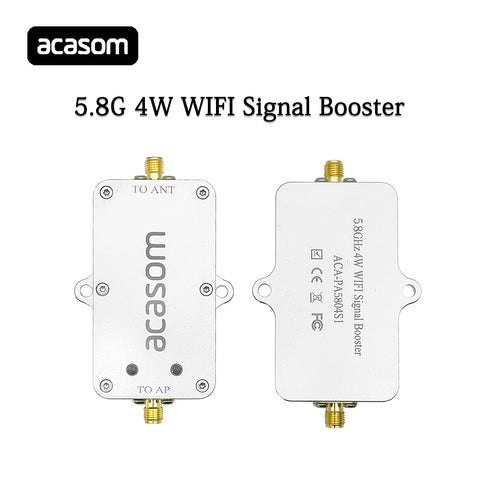

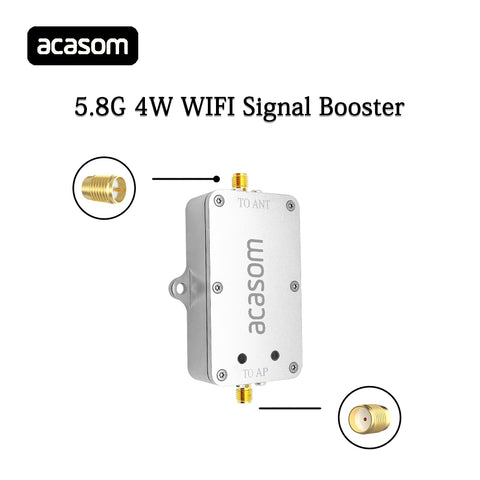

RF Connectors	Input: SMA-Female; Output: RP-SMA-Female
Power Connector	5.5*2.1mm DC Jack
Switching Delay	< 1 µs
Operating Temperature	-30℃ ~ +70℃

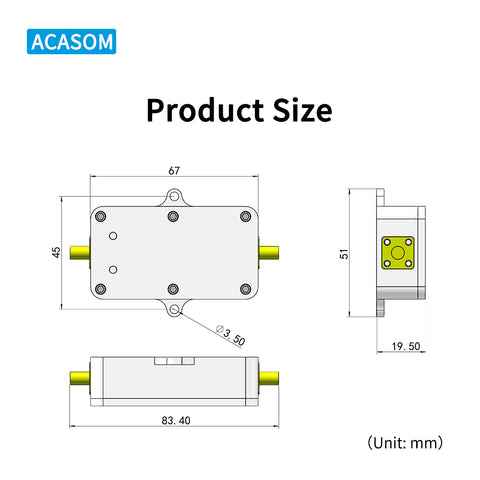

Dimensions	67 x 51 x 19.5 mm
Net Weight	0.15 kg

IMPORTANT INSTALLATION & USAGE NOTES

Power Supply: Use a stable 12V / 1.0A DC power adapter.
Heat Management: For continuous high-power operation, implementing additional heat dissipation (e.g., a heatsink or fan) is recommended.
Critical Connection Sequence: To prevent damage, always follow this order: 1) Connect the antenna. 2) Plug in the power adapter. 3) Connect your wireless device.
Peak Performance: The amplifier achieves its full 36dBm output with an input power of 19-20dBm.

WHAT'S INCLUDED

1 x 5.8GHz 4W Signal Booster (SMA)
1 x 5.8GHz 5dBi Antenna
1 x 12V 1A EU/AU Power Adapter
1 x RG402 Blue Coaxial Cable (20CM)

5.8GHz 4W WiFi 6 Signal Booster & Range Extender for Wireless Cameras
