Precision Power: High-Performance Amplifier Optimized for the 5-6GHz Band

The ACASOM 10W 5-6GHz Broadband RF Amplifier is a specialized high-power amplification solution engineered specifically for the critical 5000-6000MHz frequency range. Covering the entire 5GHz to 6GHz spectrum in a single compact unit, this amplifier delivers 10W (40dBm) of clean output power with 45% GaN efficiency and precision engineering featuring CNC machining, nickel plating, and gold-plated processes. It provides laboratory-grade performance in a field-ready package for professional applications.

Whether you're boosting 5.8GHz FPV video links, extending WiFi 5/6 networks, or amplifying communication systems within this versatile band, this amplifier delivers the clean, efficient power you need.

Why Choose This 5-6GHz Amplifier:

Optimized 5-6GHz Coverage: Engineered specifically for the 5000-6000MHz spectrum—covering 5.8GHz FPV, WiFi 5 (5GHz), WiFi 6E (6GHz), and various communication applications.

Massive 10W Output Power: Delivers a clean 40dBm (10W) across the entire 5-6GHz band, dramatically extending range for any RF application.

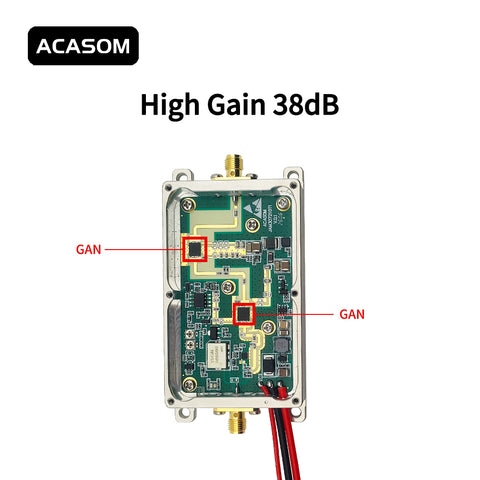

High-Efficiency GaN Technology: Achieves ≥45% power efficiency at full output using advanced Gallium Nitride (GaN) semiconductors—superior to traditional GaAs amplifiers.
Powerful 38dB Gain: A robust 38dB gain stage ensures your existing signal is boosted to maximum power with minimal added noise.
Premium Construction: Features CNC-machined aluminum housing, nickel plating, and gold-plated internal processes for superior RF performance, corrosion resistance, and thermal management.
Wide Voltage Compatibility: Accepts 24-28V DC input with a dedicated control line for remote on/off switching.
Ultra-Compact Form Factor: Measures just 90x46x17mm and weighs only 120g—easily integrates into any setup.

Technical Specifications:

Parameter	Specification

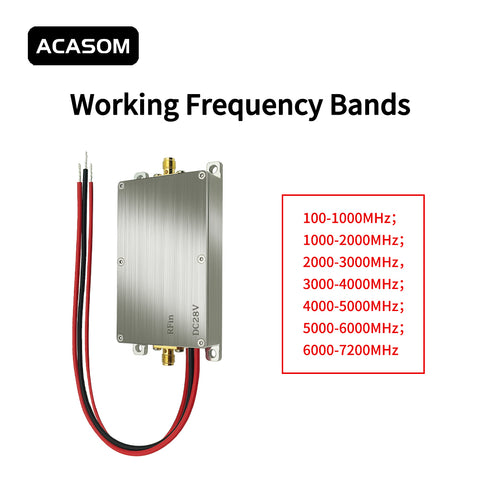

Frequency Range	5000-6000MHz (5-6GHz) — Custom bands available
Output Power (P1dB)	40 dBm (10 W)
Gain (S21)	38 dB ± 1
Input Return Loss (S11)	≤ -15 dB
RF Input Power Range	-13 dBm to +10 dBm
Efficiency	≥ 45% @ 40dBm

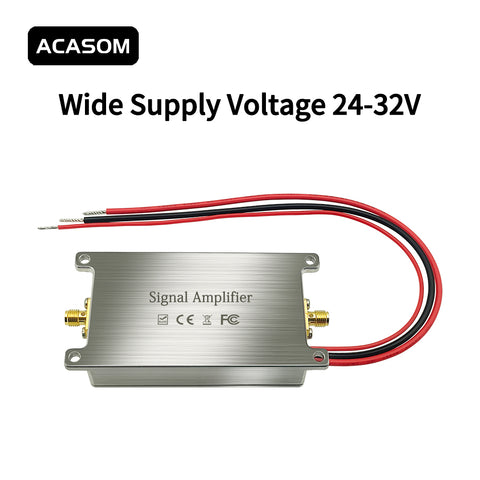

Operating Voltage	24 – 28 V DC (Wide range 24-32V supported)
Current Consumption	~0.8 A @ 28V, 40dBm Output
LED Indicator	Red (Operating)

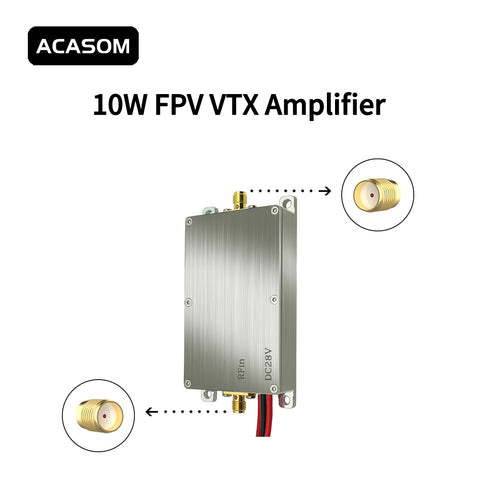

RF Connectors (Input/Output)	SMA-K
Power Connector	AWG18 20cm Red/Black Wire
Control Line	3-28V 20cm Red Wire (for remote on/off)
Operating Temperature	-30℃ ~ +85℃
Storage Temperature	-40℃ ~ +150℃
Operating Humidity	< 95% RH
Dimensions	90 x 46 x 17 mm
Shell Material & Finish	Aluminum, CNC Machined + Nickel Plating + Gilding Process
Net Weight	120 g

Premium Manufacturing Process:

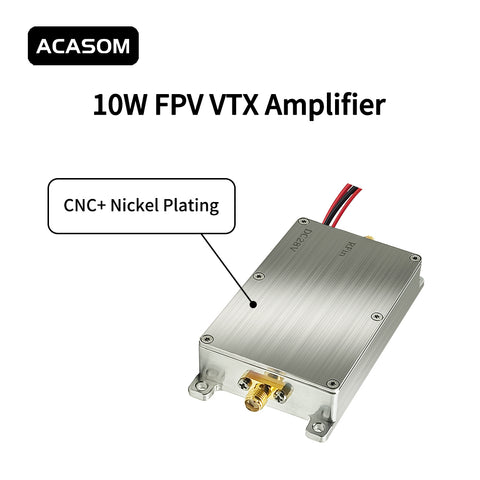

CNC Machined Housing: Precision-machined from solid aluminum for perfect fit and maximum heat transfer
Nickel Plating: Corrosion-resistant finish for long-term reliability in field conditions

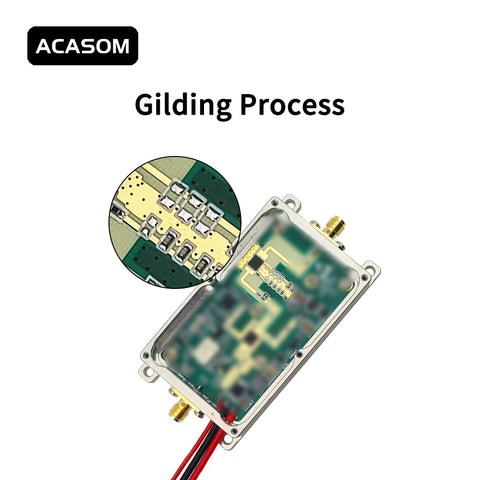

Gilding Process: Gold-plated internal RF paths for minimum loss and maximum signal integrity
Military-Grade Components: Built with high-reliability parts rated for extended temperature ranges

Recommended Heatsink Dimensions:

For sustained full-power operation, we recommend a heatsink with the following minimum dimensions:

Base Thickness: ≥ 5mm
Fin Height: ≥ 20mm
Overall Footprint: Slightly larger than amplifier base (90x46mm)

Critical Usage Notes:

Power Supply Requirement: Use a stable 28V / 1A minimum DC power supply. For best results, a 28V / 2A supply is recommended for headroom.
Thermal Management is ESSENTIAL: At full 10W output, active cooling with a heatsink and radiator fan is REQUIRED for safe, sustained operation. The aluminum case alone is insufficient for continuous high-power duty.
Safe Connection Sequence: Always connect the antenna FIRST, then apply DC power, and finally enable your RF source.
Optimal Input Drive: For maximum clean output (up to 40dBm), provide an input signal of 3-4dBm (accounting for the 38dB gain). Avoid overdriving the input beyond +10dBm.

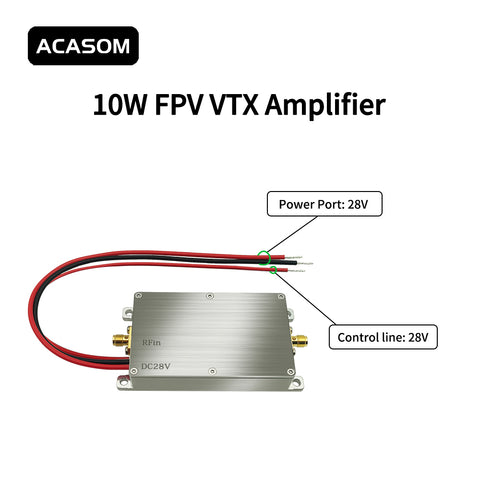

Control Line Function: The red control wire can be used to enable/disable the amplifier with a 3-28V signal, allowing remote power management.

Applications:

5.8GHz FPV Video Links: Boost long-range FPV video transmission in the popular 5.8GHz band
WiFi 5/6 Systems: Extend range for 5GHz and 6GHz WiFi networks (802.11ac/ax)
Drone Communication: Strengthen 5GHz control and video links for reliable UAV operations
Point-to-Point Wireless Links: Amplify 5GHz backhaul and bridge connections
RF Testing & Laboratory Use: General-purpose broadband amplifier for bench testing in the 5-6GHz range
Custom Applications: Contact us for specialized configurations

Technical Excellence:

Parameter	Performance
Gain Flatness	< ±1dB across the 5-6GHz band
Input Matching	Excellent return loss ensures minimal VSWR interaction
Harmonic Suppression	Internal filtering for clean output
Linearity	Optimized for low EVM in digital modulation applications (WiFi, OFDM)

Customization Available:

ACASOM supports custom frequency bands and power configurations to meet your specific requirements within the 5-6GHz range. Contact our technical sales team to discuss your project needs.
