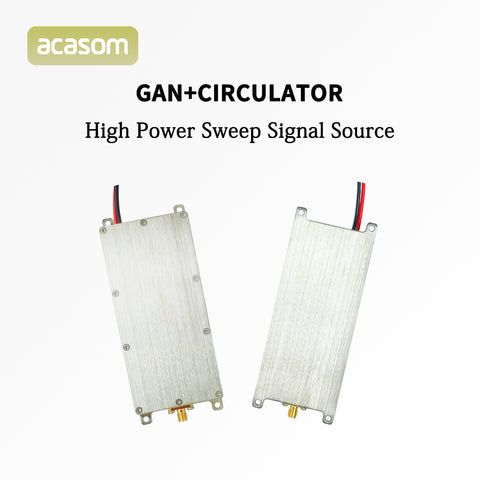

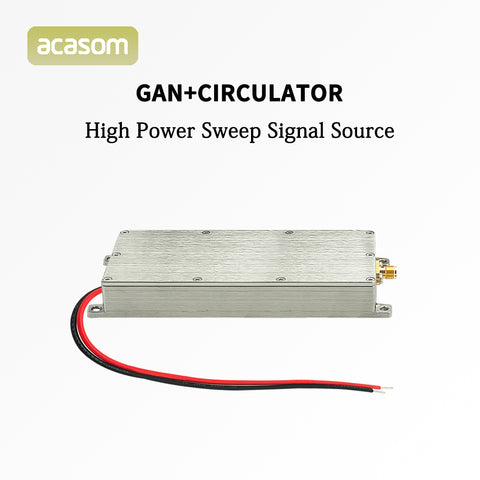

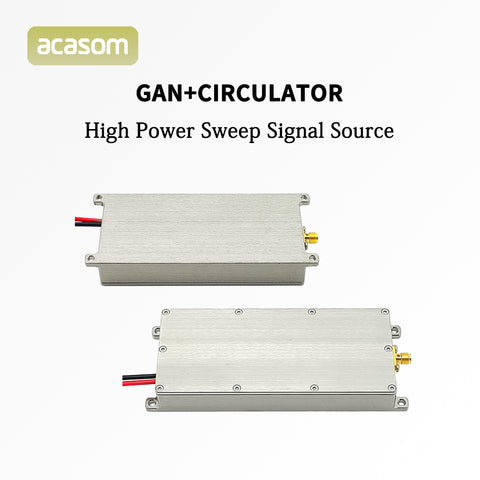

ACASOM 700MHz–830MHz 60W GaN Jammer Module is a high-performance solution tailored for FPV drone jamming, including popular models like DJI and Autel. Built for precision, reliability, and efficiency, this module is an essential component for modern anti-drone systems.

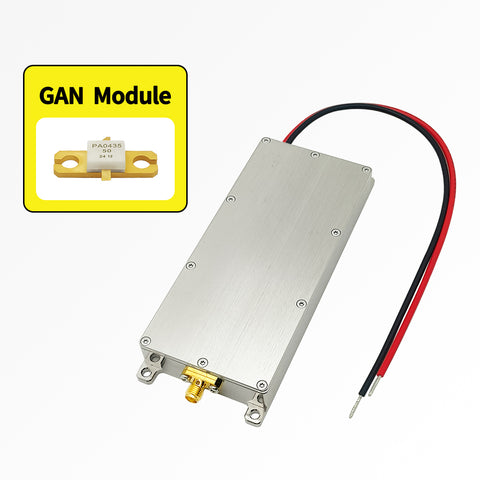

Utilizing advanced Gallium Nitride (GaN) technology, this jammer achieves superior energy efficiency, reduced current consumption, and increased power density—all while maintaining a compact footprint. Compared to traditional LDMOS designs, GaN ensures higher performance under heavy workloads and harsh conditions.

Offering customizable power outputs from 10W to 100W, the module can be configured to meet specific operational needs—whether for portable field setups or fixed installations. A ceramic tube enclosure enhances heat dissipation, promoting long-term stability, while built-in open-circuit protection safeguards the module against potential damage during operation.

From protecting sensitive facilities to enforcing no-fly zones, the ACASOM 700MHz–830MHz 60W GaN Jammer Module delivers effective, dependable defense against unauthorized drone activity. Designed for adaptability and built for endurance, it brings next-level capability to UAV countermeasure systems.

Number	Items	Specifications
1	Frequency Range	700-830MHz
2	Operating Voltage	28V
3	Flatness	±0.5dB
4	Output Power	60W/48dBm
5	Current	4.2A @33V
6	Efficiency	45%@47dBm
7	LED State	Red
8	Operating Temperature	-30℃～85℃
9	Storage Temperature	-40℃～150℃
10	Operating Humidity	＜95%RH
11	RF PORT	Output: SMA-F
12	Power Socket	15cm red/black wire
13	Shell Material	Aluminum
14	Shell Size	1315317mm
15	Net Weight	0.25Kg

1. 28V /5A power supply.

2. Heat dissipation is recommended, such as adding heat sink or radiator fan.

3. Antenna should be screwed first, then plug the power adapter.

Sweep Signal Source*1

700MHz-830MHz 60W GaN Circulator IIsolator UAV Jammer Module
